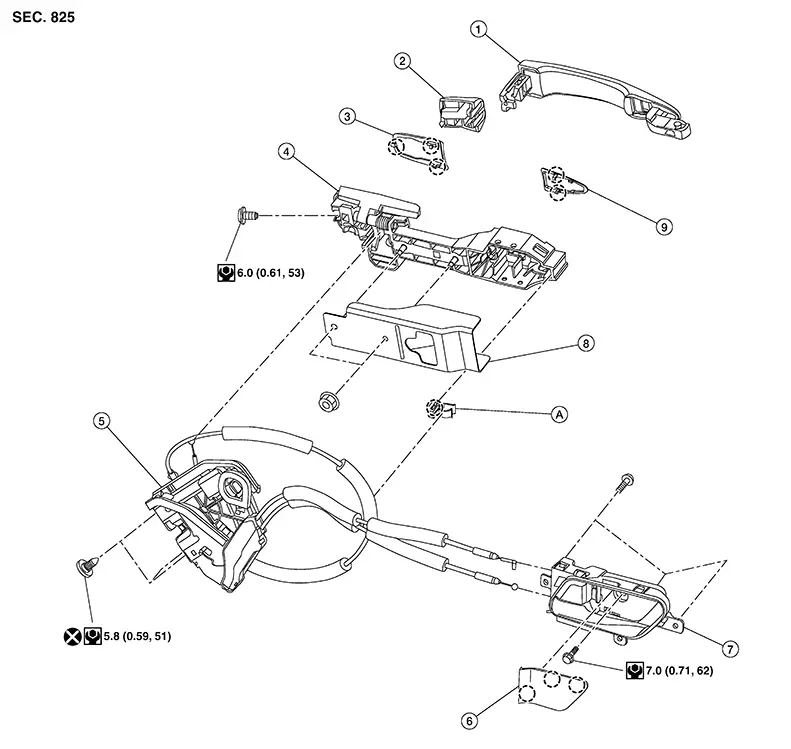

Nissan Sentra B18 (2020-2025) Service Manual: Exploded View
|
1. |
Outside handle |
2. |
Outside handle escutcheon |
3. |
Rear gasket |
|
4. |
Outside handle bracket A |
5. |
Rear door lock |
6. |
Inside handle escutcheon |
|
7. |
Inside handle |
8. |
Outside handle bracket B |
9. |
Front gasket |
|
A. |
Cable clip |
|
Pawl |
Rear Door Lock
...
Door Lock
Removal and Installation
Removal and Installation
REMOVAL
Remove
outside handle. Refer to Removal and Installation.
Remove
bolts and door lock.
INSTALLATION
Installation is in ...
