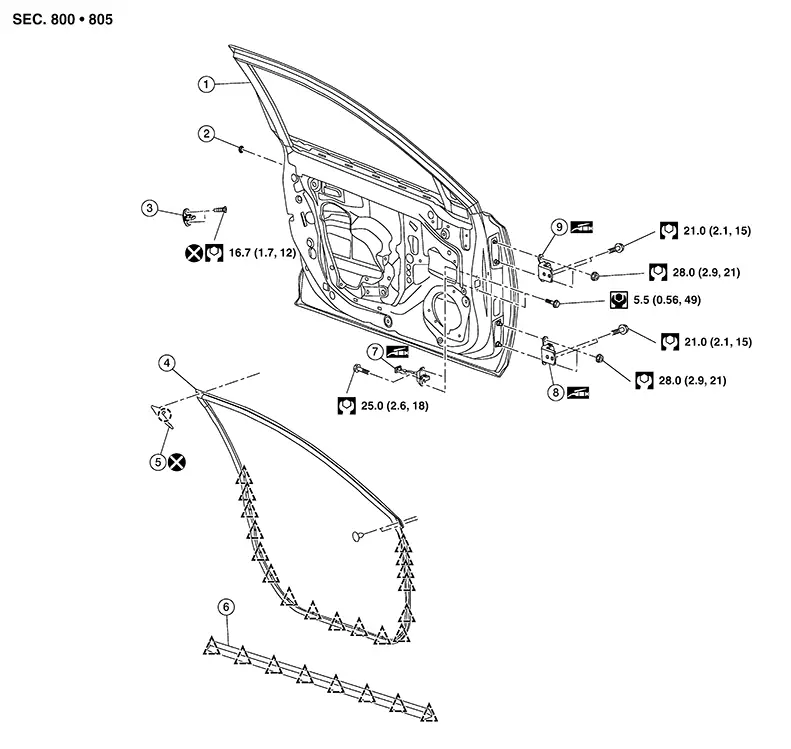

Nissan Sentra B18 (2020-2025) Service Manual: Exploded View
|
1. |
Front door panel |
2. |
Grommet |
3. |
Door striker |
|
4. |
Weather-strip |
5. |
Weather-strip rear cover |
6. |
Door parting seal |
|
7. |
Door check link |
8. |
Lower hinge |
9. |
Upper hinge |
|
|
Pawl |
|
Clip |
Front Door
...
Door Assembly
Removal and Installation
Removal and Installation
CAUTION:
Use two people when removing or installing the
front door due to its heavy weight.
...
