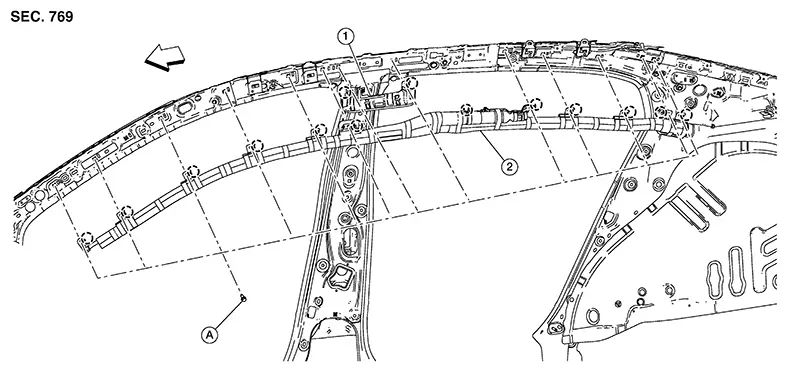

Nissan Sentra B18 (2020-2025) Service Manual: Exploded View
|
1. |
Side curtain air bag bracket |
2. |
Side curtain air bag module |
A. |
Refer to Removal and Installation. |
|
|
Front |
|
Pawl |
RH side shown; LH side similar.
Removal and Installation
Removal and
Installation
Warning:
Before servicing the SRS, place the ignition switch
in the OFF position, disconnect both battery terminals and wait at
...
