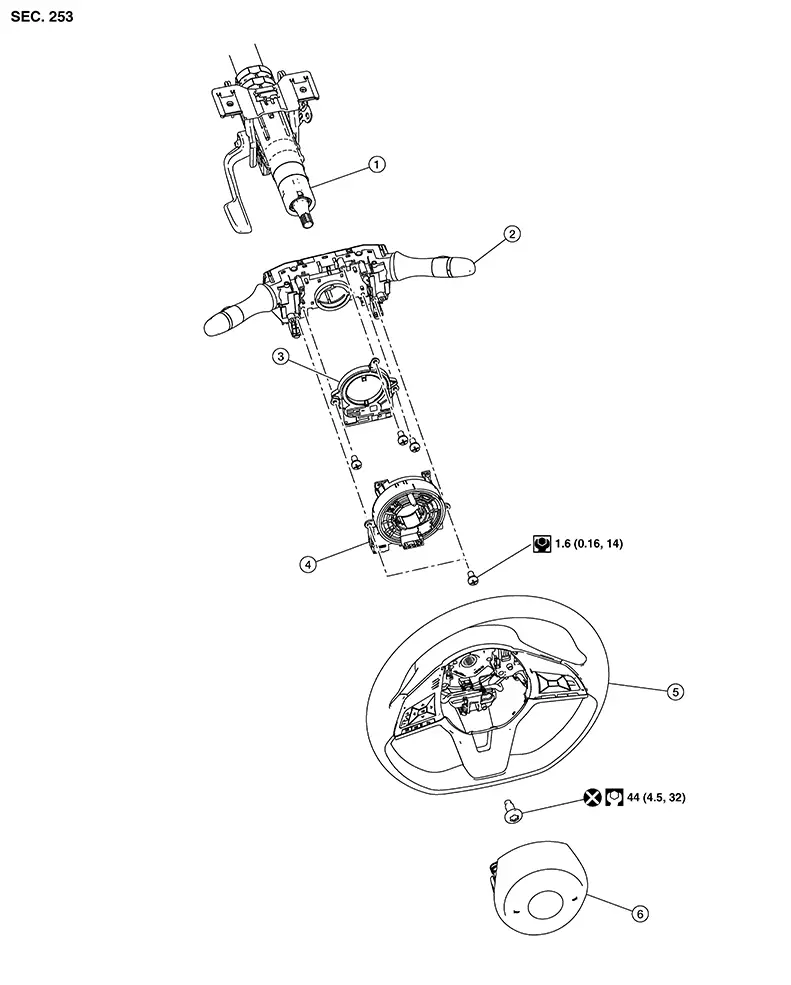

Nissan Sentra B18 (2020-2025) Service Manual: Exploded View
|
1. |
Steering column |
2. |
Combination switch |
3. |
Chassis control module (with built in steering angle sensor) |
| 4. |
Spiral cable |
5. |
Steering wheel |
6. |
Driver air bag module |
Spiral Cable
...
Removal and Installation
Removal and Installation
Warning:
Before servicing the SRS, place the ignition
switch in the OFF position, disconnect both battery terminals then
wait at l ...
