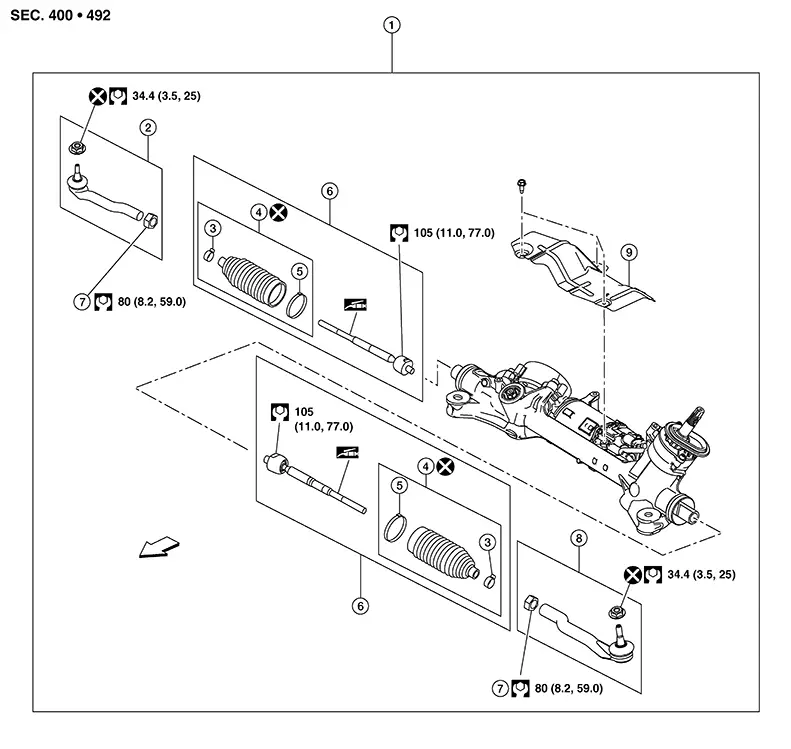

Nissan Sentra B18 (2020-2025) Service Manual: Exploded View
|
1. |
Steering gear and linkage assembly |
2. |
Outer socket (RH) |
3. |
Small boot clamp |
|
4. |
Boot kit |
5. |
Large boot clamp |
6. |
Inner socket kit |
|
7. |
Lock nut |
8. |
Outer socket (LH) |
9. |
Heat shield |
|
|
Front |
Removal and Installation - Outer Socket
Removal and Installation - Outer socket
REMOVAL
Remove
front wheel and tire using power tool. Refer to Removal and Installation.
Loosen
inner socket lock nut (A).
CAUTION:
...
