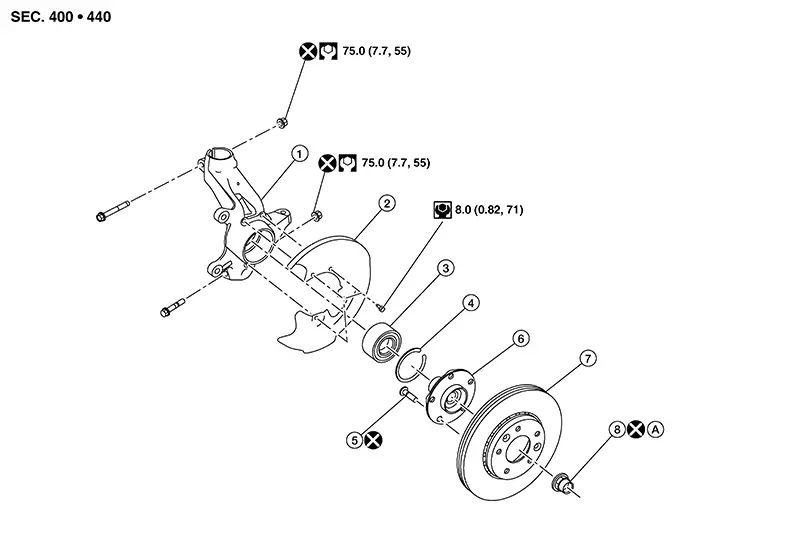

Nissan Sentra B18 (2020-2025) Service Manual: Exploded View
|
1. |
Steering knuckle |
2. |
Splash guard |
3. |
Wheel bearing |
|
4. |
Snap ring |
5. |
Wheel stud |
6. |
Wheel hub |
|
7. |
Disc brake rotor |
8. |
Wheel hub lock nut |
A. |
Refer to Removal and Installation. |
Front Wheel Hub
...
Removal and Installation
Removal and Installation
REMOVAL
Remove
steering knuckle. Refer to Removal and Installation.
Remove
wheel studs (1) from wheel hub, using suitable tool [A (if
necessary)].
...
