NOTE:
The ignition switch must be placed in the ON position for the gauge to give a reading.
The gauge indicates the engine coolant temperature.

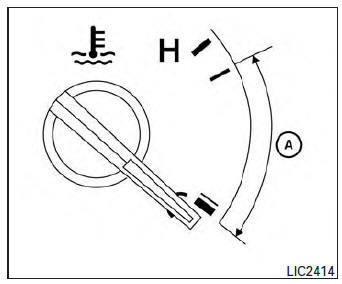

The engine coolant temperature is within the normal range when the reading is within the zone A shown in the illustration.
The engine coolant temperature varies with the outside air temperature and driving conditions.
CAUTION
If the gauge indicates a coolant temperature near the hot (H) end of the normal range, reduce vehicle speed to decrease the temperature. If the gauge is over the normal range, stop the vehicle as soon as safely possible. If the engine is overheated, continued operation of the vehicle may seriously damage the engine. See “If your vehicle overheats” in the “In case of emergency” section for immediate action required
B2268 water temp
Description
The engine coolant temperature signal is transmitted from ecm to the
combination meter via can communication.
Dtc logic
Dtc detection logic
Dtc
Consult
Detection condition
Probable malfunction location
B2268
Water temp meter
[b2268]
Ecm continuous ...
Ecu diagnosis information
Ipdm e/r (intelligent power distribution module engine room)
Reference Value
Values on the diagnosis tool
Terminal layout
Physical values
Fail-safe
Can communication control
When CAN communication with ECM and BCM is impossible, IPDM E/R performs
fail-safe ...
Removal and installation
REAR WHEEL HUB
Exploded View - Drum brake
DRUM BRAKE
Rear suspension beam
Brake assembly
Wheel stud
Wheel hub assembly (Bearing-integrated
type)
Brake drum
Removal and Installation - Drum brake
REMOVAL
Remove the wheel and tire using power tool. Refer to WT-47, "Remo ...
