Toyota Camry Owner's Manual (2023): Engine compartment

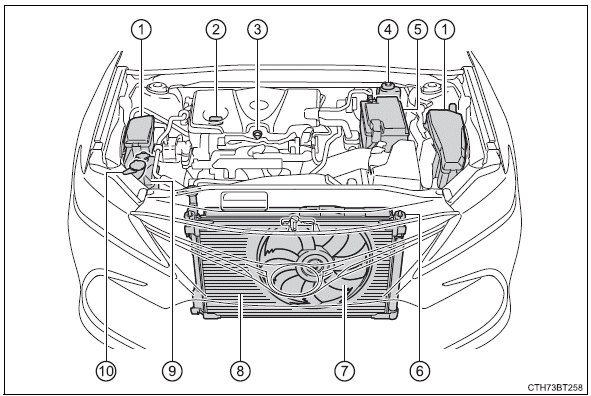

2.5 L 4-cylinder (A25A-FKS) engine

Do-it-yourself maintenance

  1. Fuse boxes (if equipped)
  2. Engine oil filler cap
  3. Engine oil level dipstick
  4. Brake fluid reservoir
  5. Battery
  6. Radiator
  7. Electric cooling fan
  8. Condenser
  9. Engine coolant reservoir
  10. Washer fluid tank

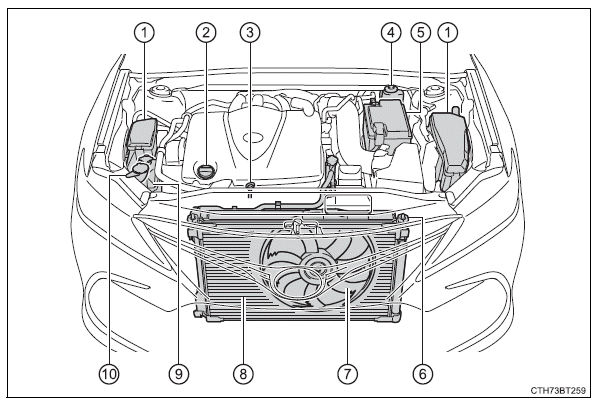

3.5 L V6 (2GR-FKS) engine

Do-it-yourself maintenance

  1. Fuse boxes (if equipped)
  2. Engine oil filler cap
  3. Engine oil level dipstick
  4. Brake fluid reservoir
  5. Battery
  6. Radiator
  7. Electric cooling fan
  8. Condenser
  9. Engine coolant reservoir
  10. Washer fluid tank
