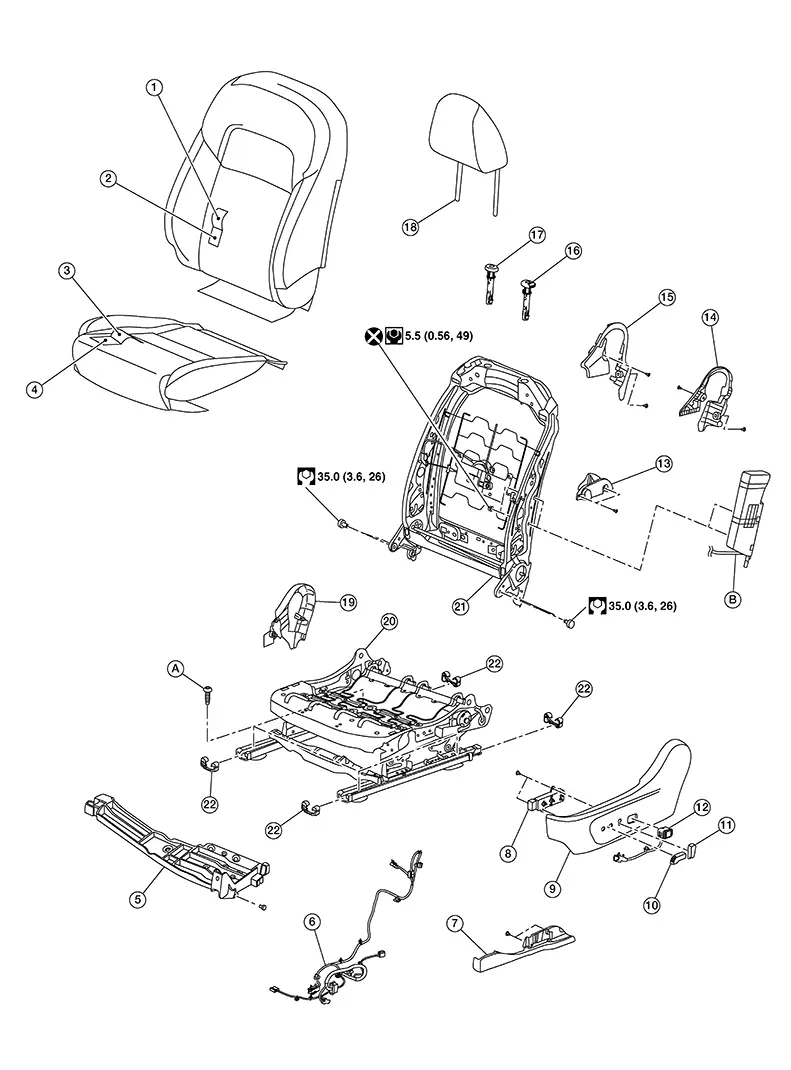

Exploded View
|
1. |
Seatback trim |
2. |
Seatback pad |
3. |
Seat cushion trim |
|
4. |
Seat cushion pad |
5. |
Seat cushion bracket |
6. |
Seat harness |
|
7. |
Slide cover (LH) |
8. |
Power seat switch |
9. |
Seat cushion outside finisher (LH) |
|
10. |
Seat slide knob |
11. |
Seat recline knob |
12. |
Lumbar support switch |
|
13. |
Slide cover (RH) |
14. |
Seat cushion inside finisher (LH) |
15. |
Seat cushion inside finisher (RH) |
|
16. |
Headrest holder (locked) |
17. |
Headrest holder (free) |
18. |
Headrest |
|
19. |
Seat cushion outside finisher (RH) |
20. |
Seat cushion frame assembly |
21. |
Seat back frame assembly |
|
22. |
Slide covers |
A. |
Refer to Removal and Installation. |
B. |
Side air bag module (not serviceable) |
|

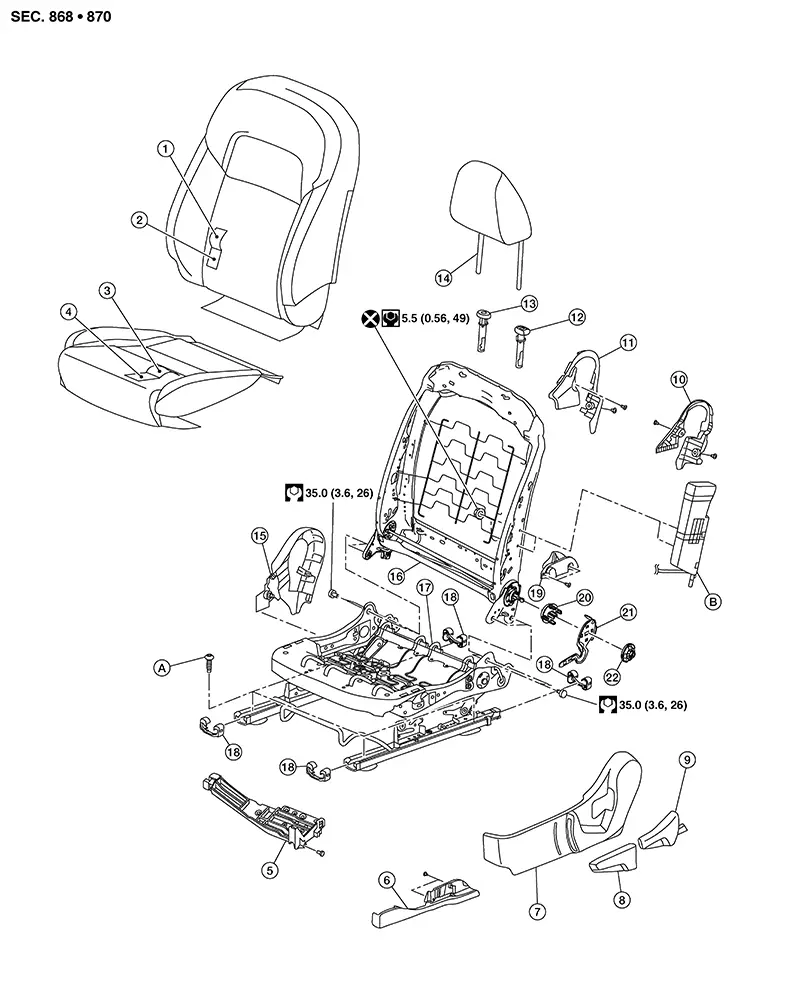

1. |
Seatback trim |
2. |
Seatback pad |
3. |
Seat cushion trim |
|
4. |
Seat cushion pad |
5. |
Seat cushion bracket |
6. |
Seat track finisher (LH) |
|
7. |
Seat cushion outside finisher (LH) |
8. |
Lift lever |
9. |
Recline lever finisher |
|
10. |
Seat cushion inside finisher (LH) |
11. |
Seat cushion inside finisher (RH) |
12. |
Headrest holder (locked) |
|
13. |
Headrest holder (free) |
14. |
Headrest |
15. |
Seat cushion outside finisher (RH) |
|
16. |
Seat back frame assembly |
17. |
Seat cushion frame assembly |
18. |
Slide covers |
|
19. |
Seat track finisher (RH) |
20. |
Reclining lever escutcheon inner |
21. |
Reclining lever bracket |
|
22. |
Reclining lever escutcheon outer |
A. |
Refer to Removal and Installation. |
B. |
Side air bag module (not serviceable) |
Removal and Installation - Seat Assembly
REMOVAL
Warning:
Do not leave any objects (screwdrivers, tools, etc.) on the seat during seat repair. It can lead to personal injury if the side air bag module should accidentally deploy.
CAUTION:
When removing or installing the seat trim, handle it carefully to keep dirt out and to avoid damage.
When checking the power seat circuit for continuity using a circuit tester, do not confuse its connector with the side air bag module connector. Such an error may cause the air bag module to deploy.
Do not drop, tilt, or bump the side air bag module while installing the seat. Always handle it with care.
After front side air bag module inflates, the front seatback assembly must be replaced.
When removing and installing the seat, use shop cloths to protect components from damage.
Before removing the front seat, ignition switch OFF, disconnect both battery cables and wait at least three minutes.
Slide the seat to the full forward position.
Remove the two rear seat bolts.
Slide the seat to the full rearward position.
Remove the two front seat bolts.
Disconnect the negative and positive battery terminals and wait at least three minutes. Refer to Removal and Installation (Battery).
Tilt the
seat rearward to disconnect the harness connectors from the seat
and remove.
Note:
Take note of harness routing and attachment location for accurate installation.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
Make sure that the seat harness or the floor trim is not damaged during installation.
Note:
When installing the LH front seat, tighten bolts to specification in the order shown.
|
LH front seat bolt torque |
: 50 N·m (5.1 kg-m, 37 ft-lb) |
Front Seat
