Nissan Sentra B18 (2020-2025) Service Manual: Component Parts

Chassis Control System

Component Parts Location

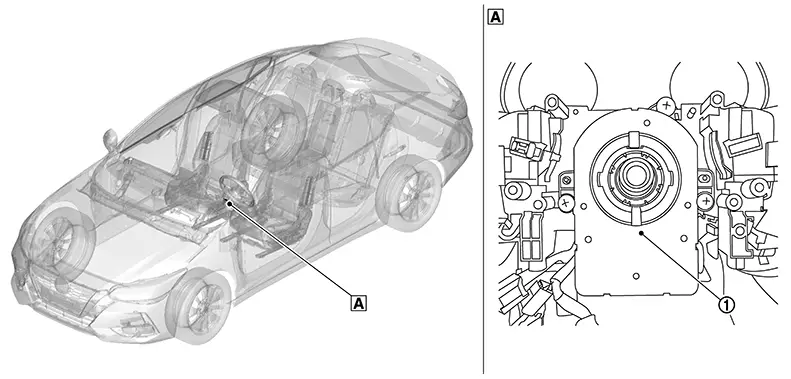

Component Parts Location

A.

View with steering wheel removed

No.

Component

Function

1.

Chassis control module (with built in steering angle sensor)

Refer to Chassis Control Module (With Built In Steering Angle Sensor).

Chassis Control Module (with Built in Steering Angle Sensor)

Chassis Control Module (With Built In Steering Angle Sensor)

FUNCTIONS WITHIN THE SYSTEM

Chassis control module (with built in steering angle sensor) controls the following systems based on the signals from each sensor, each switch, and each control unit.

  • Intelligent trace control function

  • Intelligent engine brake function

  • Active ride control function

INDIVIDUAL FUNCTIONS WITHIN THE SYSTEM

  • Transmits the signals to each control unit via CAN communication.

  • Receives the signals from each control unit via CAN communication

INDIVIDUAL OPERATION

  • Intelligent trace control function: Refer to System Description.

  • Intelligent engine brake function: Refer to System Description.

  • Active ride control function: Refer to System Description.

PARTS LOCATION

Refer to Component Parts Location.
