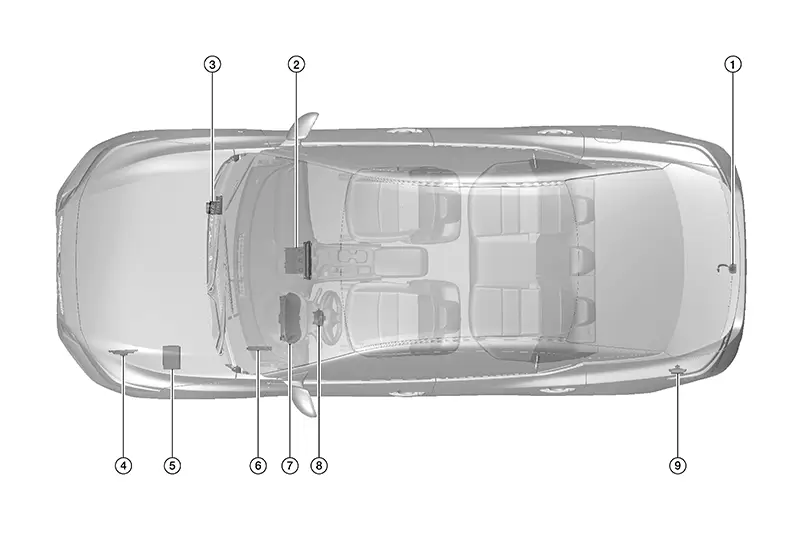

Nissan Sentra B18 (2020-2025) Service Manual: Component Parts

1.

Rear view camera

Refer to Rear View Camera .

2.

AV control unit

Refer to AV Control Unit.

3.

ABS (Anti-lock Braking System) actuator and electric unit (control unit)

Provides AV control unit with Nissan Sentra vehicle speed signal via CAN communication.

Refer to Component Parts Location for detailed component location.

4.

TCM (Transmission Control Module) (with CVT models)

Provides AV control unit with transmission range sensor signal via CAN communication.

Refer to Component Parts Location for detailed component location.

5.

IPDM E/R (Intelligent Power Distribution Module Engine Room)

Provides AV control unit with the following signals via CAN communication:

• Ignition supply signal.

• Transmission range signal.

Refer to Component Parts Location for detailed component location.

6.

BCM (Body Control Module)

Provides AV control unit with the following signals via CAN communication:

• Auto ACC signal.

• Illumination request signal.

• Door switch signal.

Refer to Component Parts Location for detailed component location.

7.

Combination meter

Provides AV control unit with parking brake status signal via CAN communication.

Refer to Component Parts Location for detailed component location.

8.

Steering angle sensor

Refer to Steering Angle Sensor.

9.

Sonar control unit

Provides AV control unit with display request signal via CAN communication.

Refer to Component Parts Location for detailed component location.
