Nissan Sentra B18 (2020-2025) Service Manual: Component Parts

Display Audio with Bose with 8" Color Display

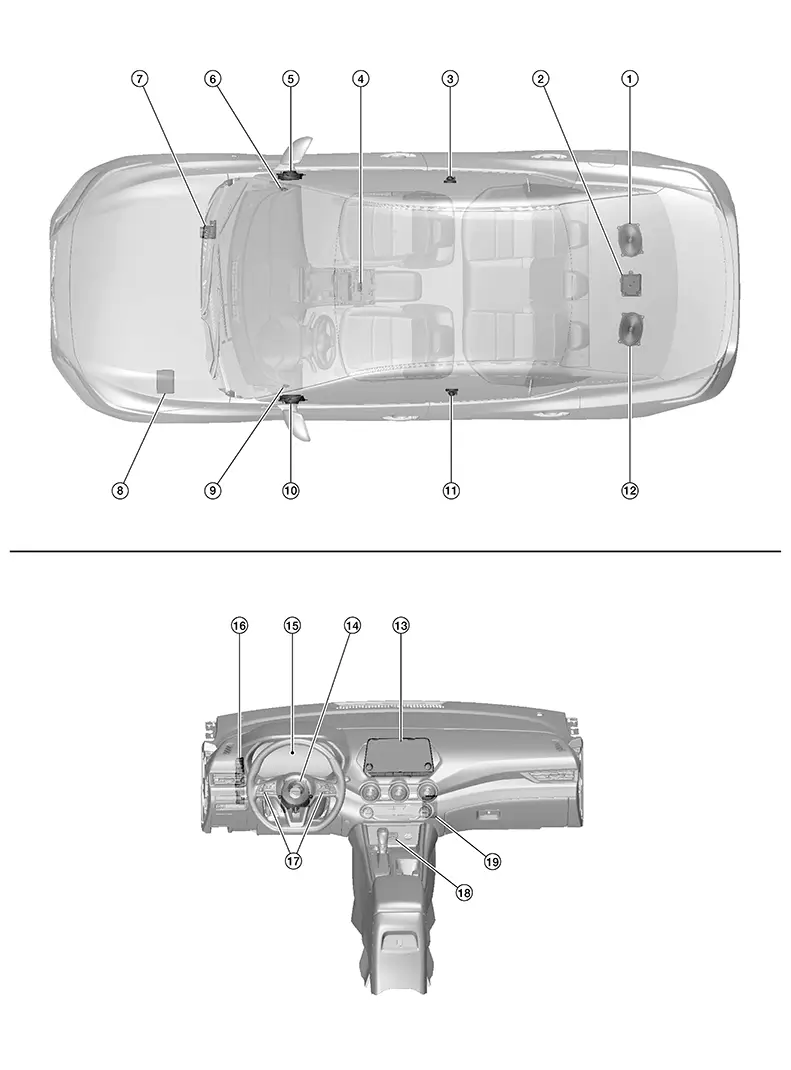

Component Parts Location

Component Parts Location

No.

Component

Function

1.

Rear speaker RH

Refer to Speakers.

2.

Bose® speaker amp.

Refer to Bose Speaker Amp..

3.

Rear door speaker RH

Refer to Speakers.

4.

Microphone

Refer to Microphone.

5.

Front door speaker RH

Refer to Speakers.

6.

Front tweeter RH

7.

ABS (Anti-lock Braking System) actuator and electric unit (control unit)

Provides AV control unit with Nissan Sentra vehicle speed signal via CAN communication.

Refer to Component Parts Location for detailed component location.

8.

IPDM E/R (Intelligent Power Distribution Module Engine Room)

Provides AV control unit with the following signals via CAN communication:

  • Ignition supply signal.

  • Transmission range signal.

Refer to Component Parts Location for detailed component location.

9.

Front tweeter LH

Refer to Speakers.

10.

Front door speaker LH

11.

Rear door speaker LH

12.

Rear speaker LH

13.

AV control unit

Refer to AV control Unit.

14.

Combination switch (spiral cable)

Provides a pass-through for the steering switch signals from the steering switches to the combination meter.

15.

Combination meter

  • Provides AV control unit with the steering switch signal via AV communication.

  • Provides AV control unit with the parking brake status signal via CAN communication.

Refer to Component Parts Location for detailed component location.

16.

BCM (Body Control Module)

Provides AV control unit with the following signals via CAN communication:

  • Auto ACC signal.

  • Illumination request signal.

  • Door switch signal.

Refer to Component Parts Location for detailed component location.

17.

Steering switches

Refer to Steering Switches.

18.

Front auxiliary input jacks

Refer to Front Auxiliary Input Jacks.

19.

Front auxiliary input jacks control unit

Refer to Front Auxiliary Input Jacks Control Unit.

Av Control Unit

AV Control Unit

  • A 8-inch color display with multi-touch control, an AM/FM/HD electronic tuner radio with RDS, audio amplifier and camera controller are integrated into the AV control unit.

  • The 8-inch color display is a high resolution monitor that includes touch panel functions.

  • Music files stored in iPod®*/USB memory can be played using the separate USB interface.

  • Music files stored in an external audio device can be played using the separate AUX input jack.

*: iPod® is a registered trademark of Apple, Inc. All rights reserved.

Bose Speaker Amp.

Bose Speaker Amp.

  • Installed under the parcel shelf.

  • Receives sound signal from AV control unit, and outputs sound signal to each tweeter and speaker.

Speakers

Speakers

FRONT TWEETER

  • 2.5 cm (1 in) tweeters are installed in the front pillar finisher.

  • Sound signals are input from the Bose speaker amp. to output high range sounds.

FRONT DOOR SPEAKER

  • 16.5 cm (6.5 in) speakers are installed in the bottom of the front doors.

  • Sound signals are input from the Bose speaker amp. to output mid range sounds.

REAR DOOR SPEAKER

  • 7.6 cm (3 in) speakers are installed in the bottom of the rear doors.

  • Sound signals are input from the Bose speaker amp. to output mid range sounds.

REAR SPEAKER

  • 15.2 x 22.9 cm (6 x 9 in) speakers are installed in the parcel shelf.

  • Sound signals are input from the Bose speaker amp. to output low range sounds.

Front Auxiliary Input Jacks Control Unit

Front Auxiliary Input Jacks Control Unit

  • Front auxiliary input jacks control unit is installed behind the A/C switch assembly.

  • The USB interface signals from the front auxiliary input jacks are transferred to the AV control unit.

Front Auxiliary Input Jacks

Front Auxiliary Input Jacks

  • Front auxiliary input jacks are installed in the console.

  • iPod® and USB memory can be connected to the AV control unit through the USB interfaces.

  • An external audio device can be connected to the AV control unit through the AUX in jack.

Steering Switches

Steering Switches

  • Steering switches are installed in the steering wheel.

  • Operations for audio and hands-free phone are possible.

  • Switches are connected to the combination meter.

  • Combination meter is connected to the AV control unit via AV communication.

Microphone

Microphone

  • The microphone is installed in the roof in the map lamp assembly.

  • The microphone is used for operation of hands-free phone system and voice recognition function.

  • Power is supplied from the AV control unit.

Antenna and Antenna Feeder

Antenna and Antenna Feeder

SATELLITE ANTENNA

  • Satellite radio antenna is installed on the rear center of the roof.

  • It receives satellite radio waves and outputs them to AV control unit.

WINDOW ANTENNA

  • AM/FM radio antenna is installed in the rear window glass.

  • It receives radio waves and outputs them to antenna amp.

  • Antenna amp. outputs amplified radio waves to AV control unit.

  • The AM/FM radio antenna and antenna amp. obtain sufficient reception power.

ANTENNA FEEDER LAYOUT

1.

Satellite antenna

2.

R154

3.

Antenna amp., R152, R153

4.

M115, M121

5.

M107, R151

6.

M112, R150
    System
