Nissan Sentra B18 (2020-2025) Service Manual: Combination Switch Reading System

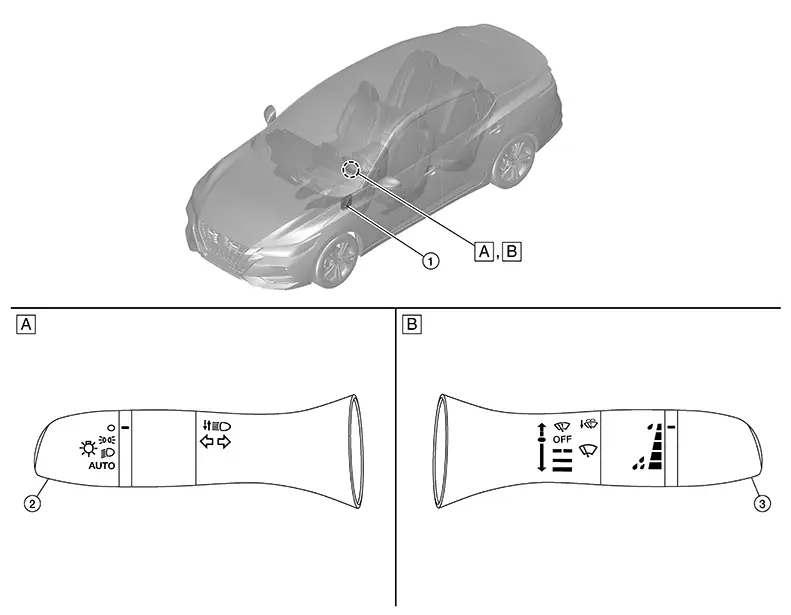

Component Parts Location
|
A. |
Combination switch (lighting and turn signal switch) |
B. |
Combination switch (wiper and washer switch) |
|
No. |
Component |
Function |
|---|---|---|
|
1. |
BCM (Body Control Module) |
Refer to System Description. |
|
2. |
Combination switch (lighting and turn signal switch) |
Refer to System Description. |
|
3. |
Combination switch (wiper and washer switch) |
