Nissan Sentra B18 (2020-2025) Service Manual: Body Exterior Paint Color
Body Exterior Paint Color
|
Component |
Color code |
KH3 |
KAD |
NBL |
B51 |
QM1 |
NBQ |
QAC |
KBZ |
EBB |
K23 |
|||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Description |
Black |
Gray |
Red |
Blue |
White |
Red |
White |
Gray |
Orange |
Silver |
||||
|
Paint type |
2S |
2M |
2CPM |
2PM |
2S |
2PM |
3P |
2PM |
2PM |
2M |
||||
|
Hard clear coat |
x |
x |
x |
x |
x |
x |
x |
x |
x |
x |
||||
|

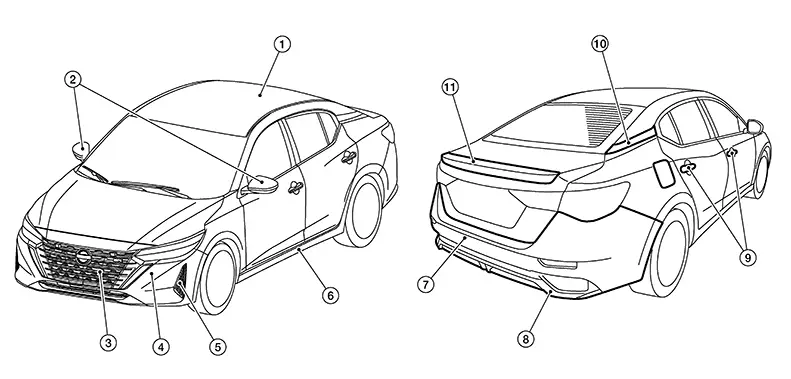

1. |
Roof |
Body Color |
KH3 |
KAD |
NBL |
B51 |
QM1 |
NBQ |
QAC |
KBZ |
EBB |
K23 |
||
|
2. |
Door mirror |
Body Color |
KH3 |
KAD |
NBL |
B51 |
QM1 |
NBQ |
QAC |
KBZ |
EBB |
K23 |
||
|
Black |
Black |
Black |
Black |
Black |
Black |
Black |
Black |
Black |
Black |
Black |
||||
|
3. |
Front grille |
Mesh |
Black |
Black |
Black |
Black |
Black |
Black |
Black |
Black |
Black |
Black |
Black |
|
|
Molding |
Chromium plate |
Cr |
Cr |
Cr |
Cr |
Cr |
Cr |
Cr |
Cr |
Cr |
Cr |
|||
|
Chromium plate (dark) |
Cr |
Cr |
Cr |
Cr |
Cr |
Cr |
Cr |
Cr |
Cr |
Cr |
||||
|
4. |
Front bumper fascia |
Body Color |
KH3 |
KAD |
NBL |
B51 |
QM1 |
NBQ |
QAC |
KBZ |
EBB |
K23 |
||
|
5. |
Front bumper finisher |
Black |
Black |
Black |
Black |
Black |
Black |
Black |
Black |
Black |
Black |
Black |
||
|
6. |
Sill cover |
Body Color |
KH3 |
KAD |
NBL |
B51 |
QM1 |
NBQ |
QAC |
KBZ |
EBB |
K23 |
||
|
7. |
Rear bumper fascia |
Body Color |
KH3 |
KAD |
NBL |
B51 |
QM1 |
NBQ |
QAC |
KBZ |
EBB |
K23 |
||
|
8. |
Diffuser |
Black |
KH3 |
KH3 |
KH3 |
KH3 |
KH3 |
KH3 |
KH3 |
KH3 |
KH3 |
KH3 |
||
|
9. |
Door outside handle |
Body Color |
KH3 |
KAD |
NBL |
B51 |
QM1 |
NBQ |
QAC |
KBZ |
EBB |
K23 |
||
|
Material color |
– |
– |
– |
– |
– |
– |
– |
– |
– |
– |
||||
|
10. |
Rear fender cover |
Material color |
– |
– |
– |
– |
– |
– |
– |
– |
– |
– |
||
|
11. |
Rear spoiler (if equipped) |
Body Color |
KH3 |
KAD |
NBL |
B51 |
QM1 |
NBQ |
QAC |
KBZ |
EBB |
K23 |
||
-
2M= 2 coat metallic
-
2PM= 2 coat pearl metallic
-
3P= 3 coat pearl
-
2CPM= 2 coat color clear pearl metallic
-
2S= 2 coat solid
|
2 TONE COLOR |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
|
Component |
2 Tone color code |
XAH |
XAB |
XGY |
XKY |
|||||
|
Portion |
Body |
Roof |
Body |
Roof |
Body |
Roof |
Body |
Roof |
||
|
Color code |
EBB |
KH3 |
QAC |
KH3 |
B51 |
KH3 |
KBZ |
KH3 |
||
|
Description |
Orange |
Black |
White |
Black |
Blue |
Black |
Gray |
Black |
||
|
Paint type |
2PM |
2S |
3P |
2S |
2PM |
2S |
2PM |
2S |
||
|
Hard clear coat |
x |
x |
x |
x |
||||||
-
2S: 2 coat solid
-
2PM: 2 coat color clear pearl metallic
-
3P: 3 coat pearl
