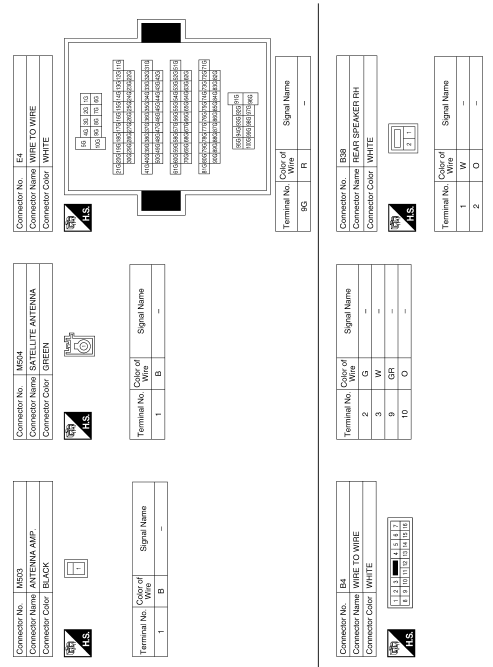

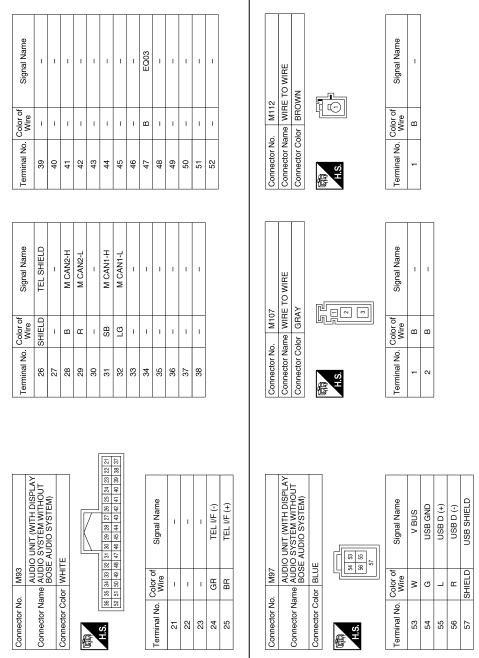

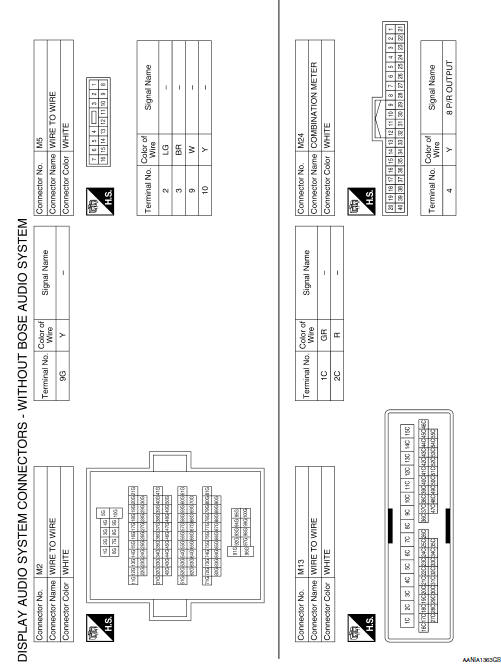

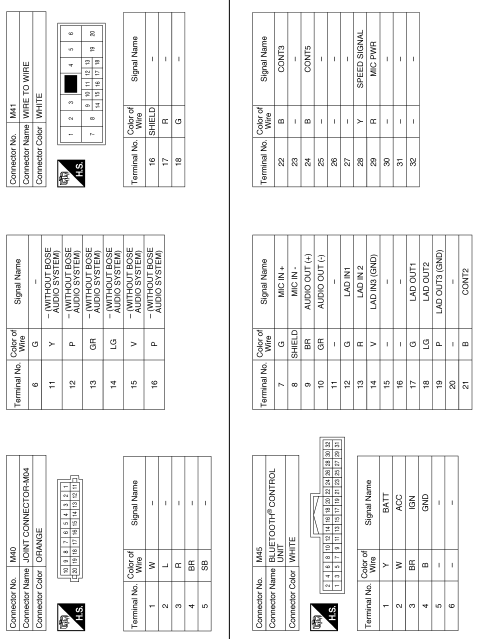

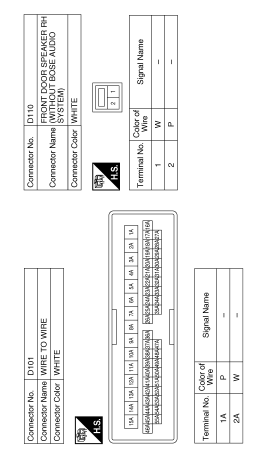

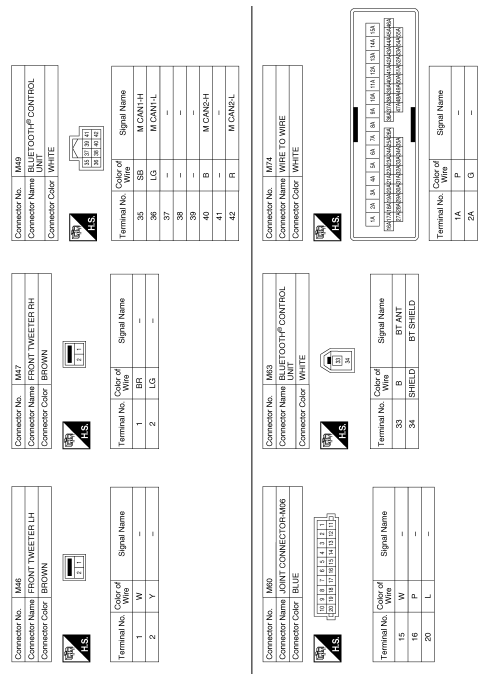

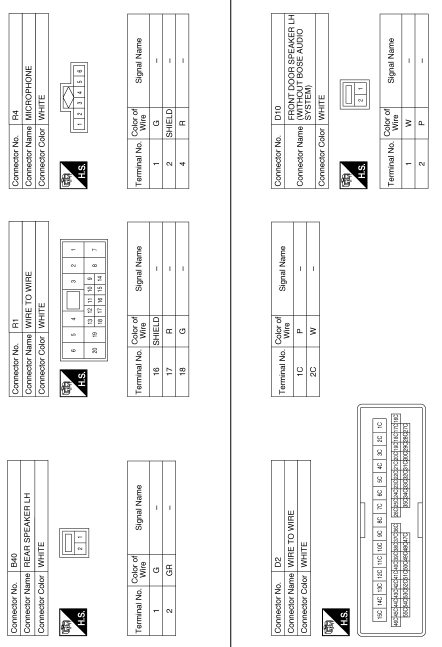

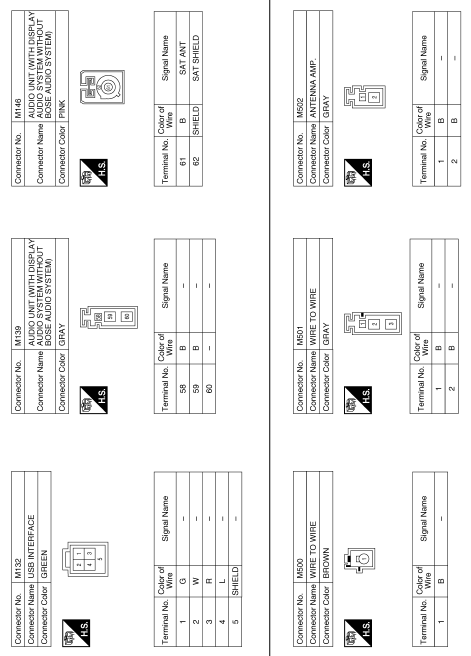

Nissan Sentra Service Manual: Wiring diagram

Display audio without bose

Wiring diagram











Basic inspection


Ecu diagnosis information
Audio unit Reference value Terminal layout Physical values BluetoothВ® control unit Reference Value Terminal layout Physical values ...

Basic inspection
Diagnosis and repair workflow Work Flow Overall sequence Detailed flow 1.Get information for symptom Get detailed information from the customer about the symptom (the condition and the envi ...

Other materials:

Tcm branch line circuit
Diagnosis procedure 1.Check connector Turn the ignition switch off. Disconnect the battery cable from the negative terminal. Check the following terminals and connectors for damage, bend and loose connection (unit side and connector side). Tcm Harness connector f50 Harness co ...

How to Check Terminal
CONNECTOR AND TERMINAL PIN KIT Use the connector and terminal pin kits listed below when replacing connectors or terminals. The connector and terminal pin kits contain some of the most commonly used NISSAN/INFINITI connectors and terminals. For detailed connector and terminal pin repla ...

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT PRE-TENSIONER"
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain types of collision. Information necessary to service the system ...
