Nissan Sentra Service Manual: Wiring diagram

Power socket

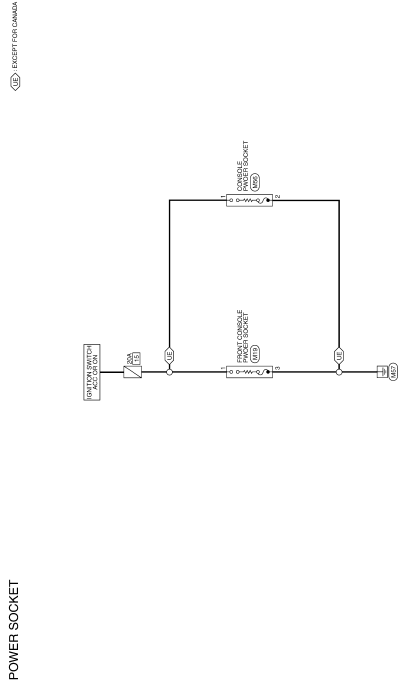

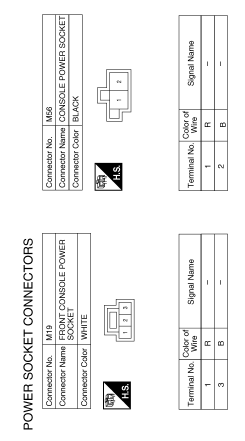

Wiring Diagram


Removal and installation


Precaution
Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT PRE-TENSIONER" The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE- ...

Removal and installation
Power socket Removal and installation Front console power socket Removal Remove the cvt/mt shift selector finisher. Refer to ip-14, "exploded view". Remove cap from the front con ...

Other materials:

Diagnosis system (ipdm e/r) (without intelligent key system)
Diagnosis Description AUTO ACTIVE TEST Description In auto active test, the IPDM E/R sends a drive signal to the following systems to check their operation. Front wiper (LO, HI) Parking lamp License plate lamp Tail lamp Front fog lamp (if equipped) Headlamp (LO, HI) A/C compres ...

B0029 Side curtain air bag module RH
Description DTC B0029 RH SIDE CURTAIN AIR BAG MODULE The RH side curtain air bag module is wired to the air bag diagnosis sensor unit. The air bag diagnosis sensor unit will monitor for opens and shorts in detected lines to the RH side curtain air bag module. PART LOCATION Refer to SRC-5, ...

U0101 can comm circuit
Description CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle multiplex communication line with high data communication speed and excellent error detection ability. Many electronic control units are equipped onto a vehicle, and each co ...
