Door does not lock/unlock with door lock and unlock switch

All door

ALL DOOR : Description

All doors do not lock/unlock using door lock and unlock switch.

ALL DOOR : Diagnosis Procedure

1.CHECK DOOR LOCK AND UNLOCK SWITCH

Check door lock and unlock switch.

Refer to DLK-97, "Component Function Check".

Is the inspection result normal? YES >> GO TO 2.

NO >> Repair or replace the malfunctioning parts.

2.CHECK DOOR LOCK ACTUATOR

Check front door lock assembly (driver side).

Refer to DLK-179, "FRONT DOOR LOCK : Removal and Installation".

Is the inspection result normal? YES >> GO TO 3.

NO >> Repair or replace the malfunctioning parts.

3.REPLACE BCM

Replace BCM. Refer to BCS-73, "Removal and Installation".
Confirm the operation after replacement.

Is the result normal? YES >> Inspection End.

NO >> Check intermittent incident. Refer to GI-39, "Intermittent Incident".

Driver side

Driver side : description

Driver side door does not lock/unlock using door lock and unlock switch.

Driver side : diagnosis procedure

1.CHECK DOOR LOCK ACTUATOR

Check front door lock assembly (driver side).

Refer to DLK-92, "DRIVER SIDE : Component Function Check".

Is the inspection result normal? YES >> GO TO 2.

NO >> Repair or replace the malfunctioning parts.

2.REPLACE BCM

Replace BCM. Refer to BCS-73, "Removal and Installation
Confirm the operation after replacement.

Is the result normal? YES >> Inspection End.

NO >> Check intermittent incident. Refer to GI-39, "Intermittent Incident".

Passenger side

Passenger side : description

Passenger side door does not lock/unlock using door lock and unlock switch.

Passenger side : diagnosis procedure

1.CHECK DOOR LOCK ACTUATOR

Check front door lock assembly (passenger side).

Refer to DLK-93, "PASSENGER SIDE : Component Function Check".

Is the inspection result normal? YES >> GO TO 2.

NO >> Repair or replace the malfunctioning parts.

2.REPLACE BCM

Replace BCM. Refer to BCS-73, "Removal and Installation".
Confirm the operation after replacement.

Is the result normal? YES >> Inspection End.

NO >> Check intermittent incident. Refer to GI-39, "Intermittent Incident".

Rear lh

Rear lh : description

Rear LH side door does not lock/unlock using door lock and unlock switch.

Rear lh : diagnosis procedure

1.CHECK DOOR LOCK ACTUATOR

Check rear door lock assembly LH.

Refer to DLK-94, "REAR LH : Component Function Check".

Is the inspection result normal? YES >> GO TO 2.

NO >> Repair or replace the malfunctioning parts.

2.REPLACE BCM

Replace BCM. Refer to BCS-73, "Removal and Installation".
Confirm the operation after replacement.

Is the result normal? YES >> Inspection End.

NO >> Check intermittent incident. Refer to GI-39, "Intermittent Incident".

Rear RH

Rear rh : description

Rear RH side door does not lock/unlock using door lock and unlock switch.

Rear rh : diagnosis procedure

1.CHECK DOOR LOCK ACTUATOR

Check rear door lock assembly RH.

Refer to DLK-95, "REAR RH : Component Function Check".

Is the inspection result normal? YES >> GO TO 2.

NO >> Repair or replace the malfunctioning parts.

2.REPLACE BCM

Replace BCM. Refer to BCS-73, "Removal and Installation".
Confirm the operation after replacement.

Is the result normal? YES >> Inspection End.

NO >> Check intermittent incident. Refer to GI-39, "Intermittent Incident".

Door does not lock/unlock with driver side door lock knob or door key cylinder

Diagnosis procedure

1.CHECK POWER DOOR LOCK OPERATION

Check power door lock operation.

Does door lock/unlock with door lock and unlock switch? YES >> GO TO 2.

NO >> Refer to DLK-118, "ALL DOOR : Diagnosis Procedure".

2.CHECK UNLOCK SENSOR

Check unlock sensor.

Refer to DLK-97, "Component Function Check".

Is the inspection result normal? YES >> GO TO 3.

NO >> Repair or replace the malfunctioning parts.

3.REPLACE BCM

Replace BCM. Refer to BCS-73, "Removal and Installation".
Confirm the operation after replacement.

Is the result normal? YES >> Inspection End.

NO >> Check intermittent incident. Refer to GI-39, "Intermittent Incident".

Door does not lock/unlock with door request switch

All door request switches

All door request switches : description

All doors do not lock/unlock using all door request switches.

All door request switches : diagnosis procedure

1.CHECK REMOTE KEYLESS ENTRY FUNCTION

Check remote keyless entry function.

Does door lock/unlock with Intelligent Key button? YES >> GO TO 2.

NO >> Refer to DLK-124, "Diagnosis Procedure".

2.CHECK LOCK/UNLOCK BY I-KEY SETTING IN WORK SUPPORT

Select INTELLIGENT KEY of BCM using CONSULT
Select LOCK/UNLOCK BY I-KEY in WORK SUPPORT mode.
Check LOCK/UNLOCK BY I-KEY setting in WORK SUPPORT.

Refer to BCS-21, "INTELLIGENT KEY : CONSULT Function (BCM - INTELLIGENT KEY)".

Is the inspection result normal? YES >> GO TO 3.

NO >> Set вЂњONвЂќ in вЂњLOCK/UNLOCK BY I-KEYвЂќ.

3.CHECK DOOR SWITCH

Check door switch.

Refer to DLK-102, "Component Function Check".

Is the inspection result normal? YES >> GO TO 4.

NO >> Repair or replace the malfunctioning parts.

4.CHECK INSIDE KEY ANTENNA

Check inside key antenna.

Instrument center: Refer to DLK-72, "DTC Logic".
Console: Refer to DLK-75, "DTC Logic".
Trunk room: Refer to DLK-78, "DTC Logic".

Is the inspection result normal? YES >> GO TO 5.

NO >> Repair or replace the malfunctioning parts.

5.CHECK OUTSIDE KEY ANTENNA

Check outside key antenna.

Driver side: Refer to DLK-81, "DTC Logic".
Passenger side: Refer to DLK-84, "DTC Logic".
Rear bumper: Refer to DLK-87, "DTC Logic".

Is the inspection result normal? YES >> GO TO 6.

NO >> Repair or replace the malfunctioning parts.

6.REPLACE BCM

Replace BCM. Refer to BCS-73, "Removal and Installation".
Confirm the operation after replacement.

Is the result normal? YES >> Inspection End.

NO >> Check intermittent incident. Refer to GI-39, "Intermittent Incident".

Driver side door request switch

Driver side door request switch : description

All doors do not lock/unlock using driver side door request switch.

Driver side door request switch : diagnosis procedure

1.CHECK DRIVER SIDE DOOR REQUEST SWITCH

Check driver side door request switch.

Refer to DLK-100, "Component Function Check".

Is the inspection result normal? YES >> GO TO 2.

NO >> Repair or replace the malfunctioning parts.

2.CHECK OUTSIDE KEY ANTENNA

Check outside key antenna (driver side).

Refer to DLK-81, "DTC Logic".

Is the inspection result normal? YES >> GO TO 3.

NO >> Repair or replace the malfunctioning parts.

3.REPLACE BCM

Replace BCM. Refer to BCS-73, "Removal and Installation".
Confirm the operation after replacement.

Is the result normal? YES >> Inspection End.

NO >> Check intermittent incident. Refer to GI-39, "Intermittent Incident".

Passenger side door request switch

PASSENGER SIDE DOOR REQUEST SWITCH : Description

All doors do not lock/unlock using passenger side door request switch.

PASSENGER SIDE DOOR REQUEST SWITCH : Diagnosis Procedure

1.CHECK PASSENGER SIDE DOOR REQUEST SWITCH

Check passenger side door request switch.

Refer to DLK-100, "Component Function Check".

Is the inspection result normal? YES >> GO TO 2.

NO >> Repair or replace the malfunctioning parts.

2.CHECK OUTSIDE KEY ANTENNA

Check outside key antenna (passenger side).

Refer to DLK-84, "DTC Logic".

Is the inspection result normal? YES >> GO TO 3.

NO >> Repair or replace the malfunctioning parts.

3.REPLACE BCM

Replace BCM. Refer to BCS-73, "Removal and Installation".
Confirm the operation after replacement.

Is the result normal? YES >> Inspection End NO >> Check intermittent incident. Refer to GI-39, "Intermittent Incident".

Door does not lock/unlock with intelligent key

Diagnosis procedure

1.CHECK POWER DOOR LOCK OPERATION

Check power door lock operation.

Does door lock/unlock with door lock and unlock switch? YES >> GO TO 2.

NO >> Refer to DLK-118, "ALL DOOR : Diagnosis Procedure".

2.CHECK REMOTE KEYLESS ENTRY RECEIVER

Check remote keyless entry receiver.

Refer to DLK-108, "Component Function Check".

Is the inspection result normal? YES >> GO TO 3.

NO >> Repair or replace the malfunctioning parts.

3.CHECK INTELLIGENT KEY

Check Intelligent Key.

Refer to DLK-106, "Component Function Check".

Is the inspection result normal? YES >> GO TO 4.

NO >> Repair or replace the malfunctioning parts.

4.CHECK DOOR SWITCH

Check door switch.

Refer to DLK-102, "Component Function Check".

Is the inspection result normal? YES >> GO TO 5.

NO >> Repair or replace the malfunctioning parts.

5.REPLACE BCM

Replace BCM. Refer to BCS-73, "Removal and Installation".
Confirm the operation after replacement.

Is the result normal? YES >> Inspection End

NO >> Check intermittent incident. Refer to GI-39, "Intermittent Incident".

Trunk lid does not open

Trunk lid opener switch

Trunk lid opener switch : description

Trunk lid does not open by trunk lid opener switch operation.

Trunk lid opener switch : diagnosis procedure

1.CHECK TRUNK LID SWITCH

Check trunk lid switch.

Refer to DLK-113, "Component Function Check".

Is the inspection result normal? YES >> GO TO 2.

NO >> Repair or replace the malfunctioning parts.

2.CHECK TRUNK LID OPENER ACTUATOR

Check trunk lid opener actuator.

Refer to DLK-111, "Component Function Check".

Is the inspection result normal? YES >> GO TO 3.

NO >> Repair or replace the malfunctioning parts.

3.REPLACE BCM

Replace BCM. Refer to BCS-73, "Removal and Installation".
Confirm the operation after replacement.

Is the result normal? YES >> Inspection End.

NO >> Check intermittent incident. Refer to GI-39, "Intermittent Incident".

Intelligent key

Intelligent key : description

Trunk lid does not open by Intelligent Key remote operation.

Intelligent key : diagnosis procedure

1.CHECK TRUNK LID OPEN FUNCTION

Check trunk lid open function with trunk lid switch.

Does trunk lid open with trunk lid opener switch? YES >> GO TO 2.

NO >> Refer to DLK-125, "TRUNK LID OPENER SWITCH : Diagnosis Procedure".

2.CHECK REMOTE KEYLESS ENTRY FUNCTION

Check remote keyless entry function.

Does door lock/unlock with Intelligent Key button? YES >> GO TO 3.

NO >> Refer to DLK-124, "Diagnosis Procedure".

3.CHECK INTELLIGENT KEY

Check Intelligent Key.

Refer to DLK-106, "Component Function Check".

Is the inspection result normal? YES >> GO TO 4.

NO >> Repair or replace the malfunctioning parts.

4.REPLACE BCM

Replace BCM. Refer to BCS-73, "Removal and Installation".
Confirm the operation after replacement.

Is the result normal? YES >> Inspection End.

NO >> Check intermittent incident. Refer to GI-39, "Intermittent Incident".

Ignition position warning function does not operate

Diagnosis Procedure

1.CHECK POWER DOOR LOCK OPERATION

Check power door lock operation.

Does door lock/unlock with driver side door lock knob and door key cylinder? YES >> GO TO 2.

NO >> Refer to DLK-121, "Diagnosis Procedure".

2.CHECK DOOR SWITCH

Check door switch.

Refer to DLK-102, "Component Function Check".

Is the inspection result normal? YES >> GO TO 3.

NO >> Repair or replace the malfunctioning parts.

3.REPLACE BCM

Replace BCM. Refer to BCS-73, "Removal and Installation".
Confirm the operation after replacement.

Is the result normal? YES >> Inspection End.

NO >> Check intermittent incident. Refer to GI-39, "Intermittent Incident".

Auto door lock operation does not operate

Diagnosis procedure

1.CHECK AUTO LOCK SET SETTING IN WORK SUPPORT

Select INTELLIGENT KEY of BCM using CONSULT.
Select AUTO LOCK SET in WORK SUPPORT mode.
Check AUTO LOCK SET setting in WORK SUPPORT.

Refer to BCS-21, "INTELLIGENT KEY : CONSULT Function (BCM - INTELLIGENT KEY)".

Is the inspection result normal? YES >> GO TO 2.

NO >> Set MODE 2, MODE 3, MODE 4, MODE 5, MODE 6 or MODE 7 in AUTO LOCK SET.

2.REPLACE BCM

Replace BCM. Refer to BCS-73, "Removal and Installation".
Confirm the operation after replacement.

Is the result normal? YES >> Inspection End.

NO >> Check intermittent incident. Refer to GI-39, "Intermittent Incident".

Vehicle speed sensing auto lock operation does not operate

Diagnosis procedure

1.CHECK AUTOMATIC LOCK/UNLOCK SELECT SETTING IN WORK SUPPORT

Select DOOR LOCK of BCM using CONSULT.
Select AUTOMATIC LOCK/UNLOCK SELECT in WORK SUPPORT mode
Check AUTOMATIC LOCK/UNLOCK SELECT setting in WORK SUPPORT.

Refer to BCS-16, "DOOR LOCK : CONSULT Function (BCM - DOOR LOCK)".

Is the inspection result normal? YES >> GO TO 2.

NO >> Set Lock Only or Lock/Unlock in WORK SUPPORT.

2.CHECK AUTOMATIC DOOR LOCK SELECT SETTING IN WORK SUPPORT

Select DOOR LOCK of BCM using CONSULT.
Select AUTOMATIC DOOR LOCK SELECT in WORK SUPPORT mode.
Check AUTOMATIC DOOR LOCK SELECT setting in WORK SUPPORT.

Refer to BCS-16, "DOOR LOCK : CONSULT Function (BCM - DOOR LOCK)".

Is the inspection result normal? YES >> GO TO 3.

NO >> Set VH SPD in AUTOMATIC DOOR LOCK SELECT.

3.REPLACE BCM

Replace BCM. Refer to BCS-73, "Removal and Installation".
Confirm the operation after replacement.

Is the result normal? YES >> Inspection End.

NO >> Check intermittent incident. Refer to GI-39, "Intermittent Incident".

Ign off interlock door unlock function does not operate

Diagnosis procedure

1.CHECK AUTOMATIC LOCK/UNLOCK SELECT SETTING IN WORK SUPPORT

Select DOOR LOCK of BCM using CONSULT.
Select AUTOMATIC LOCK/UNLOCK SELECT in WORK SUPPORT mode.
Check AUTOMATIC LOCK/UNLOCK SELECT setting in WORK SUPPORT.

Refer to BCS-16, "DOOR LOCK : CONSULT Function (BCM - DOOR LOCK)".

Is the inspection result normal? YES >> GO TO 2.

NO >> Set Unlock Only or Lock/Unlock in AUTOMATIC LOCK/UNLOCK SELECT.

2.CHECK AUTOMATIC DOOR UNLOCK SELECT SETTING IN WORK SUPPORT

Select DOOR LOCK of BCM using CONSULT.
Select AUTOMATIC DOOR UNLOCK SELECT in WORK SUPPORT mode.
Check AUTOMATIC DOOR UNLOCK SELECT setting in WORK SUPPORT.

Refer to BCS-16, "DOOR LOCK : CONSULT Function (BCM - DOOR LOCK)".

Is the inspection result normal? YES >> GO TO 3.

NO >> Set MODE 1 or MODE 3 in AUTOMATIC DOOR UNLOCK SELECT.

3.REPLACE BCM

Replace BCM. Refer to BCS-73, "Removal and Installation".
Confirm the operation after replacement.

Is the result normal? YES >> Inspection End.

NO >> Check intermittent incident. Refer to GI-39, "Intermittent Incident".

Hazard and buzzer reminder does not operate

Diagnosis procedure

1.CHECK HAZARD ANSWER BACK SETTING IN WORK SUPPORT

Select INTELLIGENT KEY of BCM using CONSULT.
Select HAZARD ANSWER BACK in WORK SUPPORT mode.
Check the HAZARD ANSWER BACK setting in WORK SUPPORT.

Refer to BCS-21, "INTELLIGENT KEY : CONSULT Function (BCM - INTELLIGENT KEY)".

Is the inspection result normal? YES >> GO TO 2.

NO >> Set the Lock Only, Unlock Only or Lock/Unlock in HAZARD ANSWER BACK.

2.CHECK ANS BACK I-KEY LOCK SETTING IN WORK SUPPORT

Select INTELLIGENT KEY of BCM using CONSULT.
Select ANS BACK I-KEY LOCK in WORK SUPPORT mode.
Check the ANS BACK I-KEY LOCK setting in WORK SUPPORT.

Refer to BCS-21, "INTELLIGENT KEY : CONSULT Function (BCM - INTELLIGENT KEY)".

Is the inspection result normal? YES >> GO TO 3.

NO >> Set the Horn Chirp or Buzzer in ANS BACK I-KEY LOCK.

3.CHECK ANS BACK I-KEY UNLOCK SETTING IN WORK SUPPORT

Select INTELLIGENT KEY of BCM using CONSULT.
Select ANS BACK I-KEY UNLOCK in WORK SUPPORT mode.
Check the ANS BACK I-KEY UNLOCK setting in WORK SUPPORT.

Refer to BCS-21, "INTELLIGENT KEY : CONSULT Function (BCM - INTELLIGENT KEY)".

Is the inspection result normal? YES >> GO TO 4.

NO >> Set the On in ANS BACK I-KEY UNLOCK.

4.CHECK HAZARD FUNCTION

Check hazard function.

Refer to DLK-105, "Component Function Check".

Is the inspection result normal? YES >> GO TO 5.

NO >> Repair or replace the malfunctioning parts.

5.CHECK INTELLIGENT KEY WARNING BUZZER

Check Intelligent Key warning buzzer.

Refer to DLK-91, "Component Function Check".

Is the inspection result normal? YES >> GO TO 6.

NO >> Repair or replace the malfunctioning parts.

6.REPLACE BCM

Replace BCM. Refer to BCS-73, "Removal and Installation".
Confirm the operation after replacement.

Is the result normal? YES >> Inspection End.

NO >> Check intermittent incident. Refer to GI-39, "Intermittent Incident".

Key reminder function does not operate

Diagnosis Procedure

1.CHECK ANTI KEY LOCK IN FUNCTI SETTING IN WORK SUPPORT

Select INTELLIGENT KEY of BCM using CONSULT.
Select ANTI KEY LOCK IN FUNCTI in WORK SUPPORT mode.
Check ANTI KEY LOCK IN FUNCTI setting in WORK SUPPORT.

Refer to BCS-21, "INTELLIGENT KEY : CONSULT Function (BCM - INTELLIGENT KEY)".

Is the inspection result normal? YES >> GO TO 2.

NO >> Set On in ANTI KEY LOCK IN FUNCTI.

2.CHECK DOOR SWITCH

Check door switch.

Refer to DLK-102, "Component Function Check".

Is the inspection result normal? YES >> GO TO 3.

NO >> Repair or replace the malfunctioning parts.

3.CHECK INSIDE KEY ANTENNA

Check inside key antenna.

Instrument center: Refer to DLK-72, "DTC Logic".
Console: Refer to DLK-75, "DTC Logic".
Trunk room: Refer to DLK-78, "DTC Logic".

Is the inspection result normal? YES >> GO TO 4.

NO >> Repair or replace the malfunctioning parts.

4.CHECK UNLOCK SENSOR

Check unlock sensor.

Refer to DLK-97, "Component Function Check".

Is the inspection result normal? YES >> GO TO 5.

NO >> Repair or replace the malfunctioning parts.

5.REPLACE BCM

Replace BCM. Refer to BCS-73, "Removal and Installation".
Confirm the operation after replacement.

Is the result normal? YES >> Inspection End.

NO >> Check intermittent incident. Refer to GI-39, "Intermittent Incident".

Off position warning does not operate

Diagnosis procedure

1.CHECK DTC WITH BCM

Check that DTC is not detected with BCM Is the inspection result normal? YES >> GO TO 2.

NO >> Perform trouble diagnosis relevant to DTC indicated.

2.CHECK DTC WITH COMBINATION METER

Check that DTC is not detected with combination meter Is the inspection result normal? YES >> GO TO 3.

NO >> Perform trouble diagnosis relevant to DTC indicated.

3.CHECK DOOR SWITCH

Check front door switch (driver side).

Refer to DLK-102, "Component Function Check".

Is the inspection result normal? YES >> GO TO 4.

NO >> Repair or replace the malfunctioning parts.

4.CHECK COMBINATION METER BUZZER

Check combination meter buzzer.

Refer to DLK-91, "Component Function Check".

Is the inspection result normal? YES >> GO TO 5.

NO >> Repair or replace the malfunctioning parts.

5.CHECK INTELLIGENT KEY WARNING BUZZER

Check Intelligent Key warning buzzer.

Refer to DLK-91, "Component Function Check".

Is the inspection result normal? YES >> GO TO 6.

NO >> Repair or replace the malfunctioning parts.

6.REPLACE BCM

Replace BCM. Refer to BCS-73, "Removal and Installation".
Confirm the operation after replacement.

Is the result normal? YES >> Inspection End.

NO >> Check intermittent incident. Refer to GI-39, "Intermittent Incident".

P position warning does not operate

Diagnosis procedure

1.CHECK DTC WITH BCM

Check that DTC is not detected with BCM Is the inspection result normal? YES >> GO TO 2.

NO >> Perform trouble diagnosis relevant to DTC indicated.

2.CHECK DTC WITH COMBINATION METER

Check that DTC is not detected with combination meter Is the inspection result normal? YES >> GO TO 3.

NO >> Perform trouble diagnosis relevant to DTC indicated.

3.CHECK INTELLIGENT KEY WARNING BUZZER

Check Intelligent Key warning buzzer.

Refer to DLK-91, "Component Function Check".

Is the inspection result normal? YES >> GO TO 4.

NO >> Repair or replace the malfunctioning parts.

4.CHECK COMBINATION METER BUZZER

Check combination meter buzzer.

Refer to DLK-91, "Component Function Check".

Is the inspection result normal? YES >> GO TO 5.

NO >> Repair or replace the malfunctioning parts.

5.CHECK DOOR SWITCH

Check front door switch (driver side).

Refer to DLK-102, "Component Function Check".

Is the inspection result normal? YES >> GO TO 6.

NO >> Repair or replace the malfunctioning parts.

6.CHECK KEY WARNING LAMP

Check key warning lamp.

Refer to DLK-107, "Component Function Check".

Is the inspection result normal? YES >> GO TO 7.

NO >> Repair or replace the malfunctioning parts.

7.CHECK SHIFT P WARNING LAMP

Check shift P warning lamp.

Refer to DLK-110, "Component Function Check".

Is the inspection result normal? YES >> GO TO 8.

NO >> Repair or replace the malfunctioning parts.

8.REPLACE BCM

Replace BCM. Refer to BCS-73, "Removal and Installation".
Confirm the operation after replacement.

Is the result normal? YES >> Inspection End.

NO >> Check intermittent incident. Refer to GI-39, "Intermittent Incident".

Acc warning does not operate

Diagnosis procedure

1.CHECK DTC WITH BCM

Check that DTC is not detected with BCM Is the inspection result normal? YES >> GO TO 2.

NO >> Perform trouble diagnosis relevant to DTC indicated.

2.CHECK DTC WITH COMBINATION METER

Check that DTC is not detected with combination meter Is the inspection result normal? YES >> GO TO 3.

NO >> Perform trouble diagnosis relevant to DTC indicated.

3.CHECK COMBINATION METER BUZZER

Check combination meter buzzer.

Refer to DLK-91, "Component Function Check".

Is the inspection result normal? YES >> GO TO 4.

NO >> Repair or replace the malfunctioning parts.

4.REPLACE BCM

Replace BCM. Refer to BCS-73, "Removal and Installation".
Confirm the operation after replacement.

Is the result normal? YES >> Inspection End.

NO >> Check intermittent incident. Refer to GI-39, "Intermittent Incident".

Take away warning does not operate

Diagnosis procedure

1.CHECK DTC WITH BCM

Check that DTC is not detected with BCM Is the inspection result normal? YES >> GO TO 2.

NO >> Perform trouble diagnosis relevant to DTC indicated.

2.CHECK DTC WITH COMBINATION METER

Check that DTC is not detected with combination meter Is the inspection result normal? YES >> GO TO 3.

NO >> Perform trouble diagnosis relevant to DTC indicated.

3.CHECK INSIDE KEY ANTENNA

Check inside key antenna.

Instrument center: Refer to DLK-72, "DTC Logic".
Console: Refer to DLK-75, "DTC Logic".
Trunk room: Refer to DLK-78, "DTC Logic".

Is the inspection result normal? YES >> GO TO 4.

NO >> Repair or replace the malfunctioning parts

4.CHECK DOOR SWITCH

Check door switch.

Refer to DLK-102, "Component Function Check".

Is the inspection result normal? YES >> GO TO 5.

NO >> Repair or replace the malfunctioning parts.

5.CHECK COMBINATION METER BUZZER

Check combination meter buzzer.

Refer to DLK-91, "Component Function Check".

Is the inspection result normal? YES >> GO TO 6.

NO >> Repair or replace the malfunctioning parts.

6.CHECK INTELLIGENT KEY WARNING BUZZER

Check Intelligent Key warning buzzer.

Refer to DLK-91, "Component Function Check".

Is the inspection result normal? YES >> GO TO 7.

NO >> Repair or replace the malfunctioning parts.

7.CHECK KEY WARNING LAMP

Check key warning lamp.

Refer to DLK-107, "Component Function Check".

Is the inspection result normal? YES >> GO TO 8.

NO >> Repair or replace the malfunctioning parts.

8.REPLACE BCM

Replace BCM. Refer to BCS-73, "Removal and Installation".
Confirm the operation after replacement.

Is the result normal? YES >> Inspection End.

NO >> Check intermittent incident. Refer to GI-39, "Intermittent Incident".

Intelligent key low battery warning does not operate

Diagnosis procedure

1.CHECK DTC WITH BCM

Check that DTC is not detected with BCM Is the inspection result normal? YES >> GO TO 2.

NO >> Perform trouble diagnosis relevant to DTC indicated.

2.CHECK DTC WITH COMBINATION METER

Check that DTC is not detected with combination meter Is the inspection result normal? YES >> GO TO 3.

NO >> Perform trouble diagnosis relevant to DTC indicated.

3.CHECK LO- BATT OF KEY FOB WARN SETTING IN WORK SUPPORT

Select INTELLIGENT KEY of BCM.
Select LO- BATT OF KEY FOB WARN in WORK SUPPORT mode.
Check LO- BATT OF KEY FOB WARN setting in WORK SUPPORT.

Refer to BCS-21, "INTELLIGENT KEY : CONSULT Function (BCM - INTELLIGENT KEY)".

Is the inspection result normal? YES >> GO TO 4.

NO >> Set ON in LO- BATT OF KEY FOB WARN.

4.CHECK INTELLIGENT KEY

Check Intelligent Key.

Refer to DLK-106, "Component Function Check".

Is the inspection result normal? YES >> GO TO 5.

NO >> Repair or replace the malfunctioning parts.

5.CHECK INSIDE KEY ANTENNA

Check inside key antenna.

Instrument center: Refer to DLK-72, "DTC Logic".
Console: Refer to DLK-75, "DTC Logic".
Trunk room: Refer to DLK-78, "DTC Logic".

Is the inspection result normal? YES >> GO TO 6.

NO >> Repair or replace the malfunctioning parts.

6.CHECK KEY WARNING LAMP

Check key warning lamp.

Refer to DLK-107, "Component Function Check".

Is the inspection result normal? YES >> GO TO 7.

NO >> Repair or replace the malfunctioning parts.

7.REPLACE BCM

Replace BCM. Refer to BCS-73, "Removal and Installation".
Confirm the operation after replacement.

Is the result normal? YES >> Inspection End.

NO >> Check intermittent incident. Refer to GI-39, "Intermittent Incident".

Door lock operation warning does not operate

Diagnosis procedure

1.CHECK DOOR LOCK FUNCTION

Check door lock function.

Does door lock/unlock using door request switch? YES >> GO TO 2.

NO >> Refer to DLK-121, "Diagnosis Procedure".

2.CHECK INTELLIGENT KEY WARNING BUZZER

Check Intelligent Key warning buzzer.

Refer to DLK-91, "Component Function Check".

Is the inspection result normal? YES >> GO TO 3.

NO >> Repair or replace the malfunctioning parts.

3.REPLACE BCM

Replace BCM. Refer to BCS-73, "Removal and Installation".
Confirm the operation after replacement.

Is the result normal? YES >> Inspection End.

NO >> Check intermittent incident. Refer to GI-39, "Intermittent Incident".

Key id warning does not operate

Diagnosis procedure

1.CHECK DTC WITH BCM

Check that DTC is not detected with BCM Is the inspection result normal? YES >> GO TO 2.

NO >> Perform trouble diagnosis relevant to DTC indicated.

2.CHECK DTC WITH COMBINATION METER

Check that DTC is not detected with combination meter Is the inspection result normal? YES >> GO TO 3.

NO >> Perform trouble diagnosis relevant to DTC indicated.

3.CHECK INTELLIGENT KEY

Check Intelligent Key.

Refer to DLK-106, "Component Function Check".

Is the inspection result normal? YES >> GO TO 4.

NO >> Repair or replace the malfunctioning parts.

4.CHECK INSIDE KEY ANTENNA

Check inside key antenna.

Instrument center: Refer to DLK-72, "DTC Logic".
Console: Refer to DLK-75, "DTC Logic".
Trunk room: Refer to DLK-78, "DTC Logic".

Is the inspection result normal? YES >> GO TO 5.

NO >> Repair or replace the malfunctioning parts.

5.CHECK KEY WARNING LAMP

Check key warning lamp.

Refer to DLK-107, "Component Function Check".

Is the inspection result normal? YES >> GO TO 6.

NO >> Repair or replace the malfunctioning parts.

6.REPLACE BCM

Replace BCM. Refer to BCS-73, "Removal and Installation".
Confirm the operation after replacement.

Is the result normal? YES >> Inspection End.

NO >> Check intermittent incident. Refer to GI-39, "Intermittent Incident".

Panic alarm function does not operate

Diagnosis Procedure

1.CHECK REMOTE KEYLESS ENTRY FUNCTION

Check remote keyless entry function.

Does door lock/unlock with Intelligent Key button? YES >> GO TO 2.

NO >> Refer to DLK-124, "Diagnosis Procedure".

2.CHECK HORN OPERATION

Select IPDM E/R using CONSULT.
Select HORN in ACTIVE TEST mode.
Touch On to check that it works normally.

Is the inspection result normal? YES >> GO TO 3.

NO >> Repair or replace the malfunctioning parts.

3.CHECK PANIC ALARM SET SETTING IN WORK SUPPORT

Select INTELLIGENT KEY of BCM.
Select PANIC ALARM SET in WORK SUPPORT mode.
Check PANIC ALARM SET setting in WORK SUPPORT.

Refer to BCS-21, "INTELLIGENT KEY : CONSULT Function (BCM - INTELLIGENT KEY)".

Is the inspection result normal? YES >> GO TO 4.

NO >> Set MODE 1 or MODE 3 in PANIC ALARM SET

4.REPLACE BCM

Replace BCM. Refer to BCS-73, "Removal and Installation".
Confirm the operation after replacement.

Is the result normal? YES >> Inspection End.

NO >> Check intermittent incident. Refer to GI-39, "Intermittent Incident".

Squeak and rattle trouble diagnoses

Work Flow

CUSTOMER INTERVIEW

CUSTOMER INTERVIEW

Interview the customer if possible, to determine the conditions that exist when the noise occurs. Use the Diagnostic Worksheet during the interview to document the facts and conditions when the noise occurs and any customer's comments; refer to DLK-147, "Diagnostic Worksheet". This information is necessary to duplicate the conditions that exist when the noise occurs.

The customer may not be able to provide a detailed description or the location of the noise. Attempt to obtain all the facts and conditions that exist when the noise occurs (or does not occur).
If there is more than one noise in the vehicle, be sure to diagnose and repair the noise that the customer is concerned about. This can be accomplished by test driving the vehicle with the customer.
After identifying the type of noise, isolate the noise in terms of its characteristics. The noise characteristics are provided so the customer, service adviser and technician are all speaking the same language when defining the noise.
Squeak вЂ”(Like tennis shoes on a clean floor) Squeak characteristics include the light contact/fast movement/brought on by road conditions/hard surfaces = higher pitch noise/softer surfaces = lower pitch noises/edge to surface = chirping.
CreakвЂ”(Like walking on an old wooden floor) Creak characteristics include firm contact/slow movement/twisting with a rotational movement/pitch dependent on materials/often brought on by activity.
RattleвЂ”(Like shaking a baby rattle) Rattle characteristics include the fast repeated contact/vibration or similar movement/loose parts/missing clip or fastener/incorrect clearance.
Knock вЂ”(Like a knock on a door) Knock characteristics include hollow sounding/sometimes repeating/often brought on by driver action
TickвЂ”(Like a clock second hand) Tick characteristics include gentle contacting of light materials/loose components/can be caused by driver action or road conditions.
ThumpвЂ”(Heavy, muffled knock noise) Thump characteristics include softer knock/dead sound often brought on by activity.
BuzzвЂ”(Like a bumble bee) Buzz characteristics include high frequency rattle/firm contact.
Often the degree of acceptable noise level will vary depending upon the person. A noise that you may judge as acceptable may be very irritating to the customer.
Weather conditions, especially humidity and temperature, may have a great effect on noise level.

DUPLICATE THE NOISE AND TEST DRIVE

If possible, drive the vehicle with the customer until the noise is duplicated. Note any additional information on the Diagnostic Worksheet regarding the conditions or location of the noise. This information can be used to duplicate the same conditions when you confirm the repair.

If the noise can be duplicated easily during the test drive, to help identify the source of the noise, try to duplicate the noise with the vehicle stopped by doing one or all of the following:

Close a door.
Tap or push/pull around the area where the noise appears to be coming from.
Rev the engine.
Use a floor jack to recreate vehicle вЂњtwistвЂќ.
At idle, apply engine load (electrical load, half-clutch on M/T model, drive position on CVT and A/T models).
Raise the vehicle on a hoist and hit a tire with a rubber hammer

Drive the vehicle and attempt to duplicate the conditions the customer states exist when the noise occurs.
If it is difficult to duplicate the noise, drive the vehicle slowly on an undulating or rough road to stress the vehicle body.

CHECK RELATED SERVICE BULLETINS

After verifying the customer concern or symptom, check ASIST for Technical Service Bulletins (TSBs) related to that concern or symptom.

If a TSB relates to the symptom, follow the procedure to repair the noise.

LOCATE THE NOISE AND IDENTIFY THE ROOT CAUSE

Narrow down the noise to a general area. To help pinpoint the source of the noise, use a listening tool (Chassis Ear: J-39570, Engine Ear: J-39565 and mechanic's stethoscope).
Narrow down the noise to a more specific area and identify the cause of the noise by:

removing the components in the area that you suspect the noise is coming from.

Do not use too much force when removing clips and fasteners, otherwise clips and fasteners can be broken or lost during the repair, resulting in the creation of new noise.
tapping or pushing/pulling the component that you suspect is causing the noise.

Do not tap or push/pull the component with excessive force, otherwise the noise will be eliminated only temporarily.
feeling for a vibration with your hand by touching the component(s) that you suspect is (are) causing the noise.
placing a piece of paper between components that you suspect are causing the noise.
looking for loose components and contact marks.

Refer to DLK-144, "Generic Squeak and Rattle Troubleshooting".

REPAIR THE CAUSE

If the cause is a loose component, tighten the component securely.
If the cause is insufficient clearance between components:

separate components by repositioning or loosening and retightening the component, if possible.
insulate components with a suitable insulator such as urethane pads, foam blocks, felt cloth tape or urethane tape. A NISSAN Squeak and Rattle Kit (J-50397) is available through your authorized NISSAN Parts Department.

CAUTION:

Do not use excessive force as many components are constructed of plastic and may be damaged.

NOTE:

Always check with the Parts Department for the latest parts information.
The materials contained in the NISSAN Squeak and Rattle Kit (J-50397) are listed on the inside cover of the kit; and can each be ordered separately as needed.
The following materials not found in the kit can also be used to repair squeaks and rattles.

SILICONE GREASE: Use instead of UHMW tape that will be visible or does not fit. The silicone grease will only last a few months.
SILICONE SPRAY: Use when grease cannot be applied.
DUCT TAPE: Use to eliminate movement.

CONFIRM THE REPAIR

Confirm that the cause of a noise is repaired by test driving the vehicle. Operate the vehicle under the same conditions as when the noise originally occurred. Refer to the notes on the Diagnostic Worksheet.

Generic Squeak and Rattle Troubleshooting

Refer to Table of Contents for specific component removal and installation information.

INSTRUMENT PANEL

Most incidents are caused by contact and movement between:

Cluster lid A and the instrument panel
Acrylic lens and combination meter housing
Instrument panel to front pillar finisher
Instrument panel to windshield
Instrument panel pins
Wiring harnesses behind the combination meter
A/C defroster duct and duct joint

These incidents can usually be located by tapping or moving the components to duplicate the noise or by pressing on the components while driving to stop the noise. Most of these incidents can be repaired by applying felt cloth tape or silicone spray (in hard to reach areas). Urethane pads can be used to insulate wiring harness.

CAUTION:

Do not use silicone spray to isolate a squeak or rattle. If you saturate the area with silicone, you will not be able to recheck the repair.

CENTER CONSOLE

Components to pay attention to include:

Shift selector assembly cover to finisher
A/C control unit and cluster lid C
Wiring harnesses behind audio and A/C control unit

The instrument panel repair and isolation procedures also apply to the center console.

DOORS

Pay attention to the:

Finisher and inner panel making a slapping noise
Inside handle escutcheon to door finisher
Wiring harnesses tapping
Door striker out of alignment causing a popping noise on starts and stops

Tapping or moving the components or pressing on them while driving to duplicate the conditions can isolate many of these incidents. You can usually insulate the areas with felt cloth tape or insulator foam blocks from the NISSAN Squeak and Rattle Kit (J-50397) to repair the noise.

TRUNK

Trunk noises are often caused by a loose jack or loose items put into the trunk by the owner.

In addition look for:

Trunk lid bumpers out of adjustment
Trunk lid striker out of adjustment
The trunk lid torsion bars knocking together
A loose license plate or bracket

Most of these incidents can be repaired by adjusting, securing or insulating the item(s) or component(s) causing the noise.

SUNROOF/HEADLINING

Noises in the sunroof/headlining area can often be traced to one of the following:

Sunroof lid, rail, linkage or seals making a rattle or light knocking noise
Sun visor shaft shaking in the holder
Front or rear windshield touching headlining and squeaking

Again, pressing on the components to stop the noise while duplicating the conditions can isolate most of these incidents. Repairs usually consist of insulating with felt cloth tape.

OVERHEAD CONSOLE (FRONT AND REAR)

Overhead console noises are often caused by the console panel clips not being engaged correctly. Most of these incidents are repaired by pushing up on the console at the clip locations until the clips engage.

In addition look for:

Loose harness or harness connectors
Front console map/reading lamp lens loose.
Loose screws at console attachment points.

SEATS

When isolating seat noise it's important to note the position the seat is in and the load placed on the seat when the noise is present. These conditions should be duplicated when verifying and isolating the cause of the noise.

Cause of seat noise include:

Headrest rods and holder
A squeak between the seat pad cushion and frame
The rear seatback lock and bracket

These noises can be isolated by moving or pressing on the suspected components while duplicating the conditions under which the noise occurs. Most of these incidents can be repaired by repositioning the component or applying urethane tape to the contact area.

UNDERHOOD

Some interior noise may be caused by components under the hood or on the engine wall. The noise is then transmitted into the passenger compartment.

Causes of transmitted underhood noise include:

Any component installed to the engine wall
Components that pass through the engine wall
Engine wall mounts and connectors
Loose radiator installation pins
Hood bumpers out of adjustment
Hood striker out of adjustment

These noises can be difficult to isolate since they cannot be reached from the interior of the vehicle. The best method is to secure, move or insulate one component at a time and test drive the vehicle. Also, engine rpm or load can be changed to isolate the noise. Repairs can usually be made by moving, adjusting, securing, or insulating the component causing the noise.

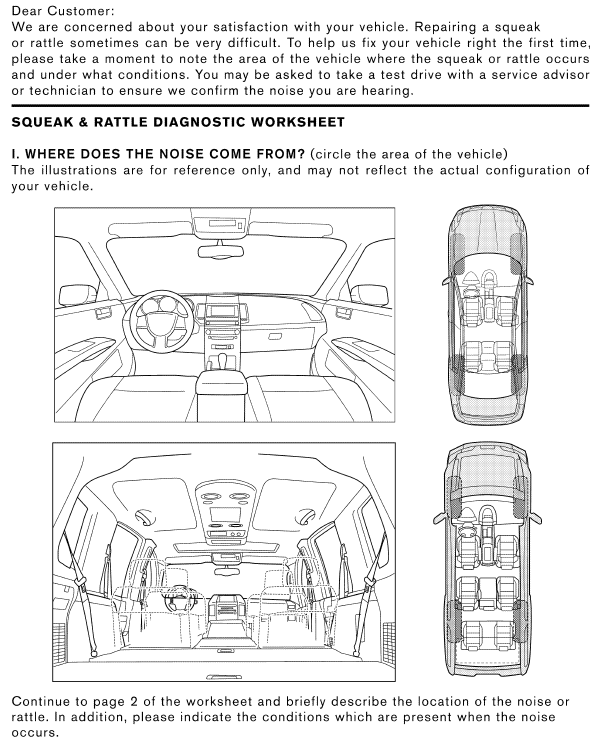

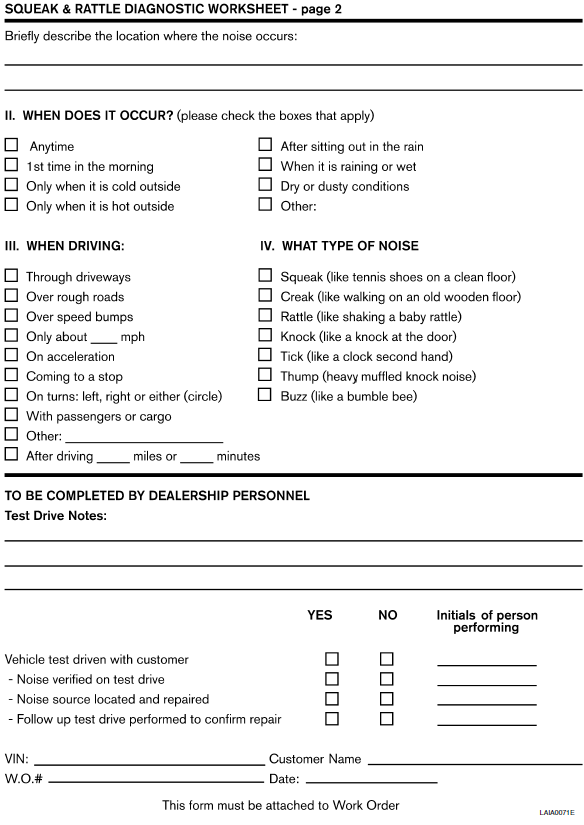

Diagnostic Worksheet

Removal and installation

Door lock and unlock switch

Component function check 1.Check function Select door lock of bcm using consult. Select cdl lock sw, cdl unlock sw in data monitor mode. Check that the function operates normally according to ...

Removal and installation

Hood Hood assembly Hood assembly : exploded view Hood hinge (LH/RH) Hood assembly Hood bumper rubber Hood seal Hood insulator Hood support rod Hood support rod clamp Clip ...

Other materials:

Flywheel
Exploded View Flywheel Removal and Installation REMOVAL Remove the engine and the transaxle assembly from the vehicle, and separate the transaxle from the engine. Refer to TM-28, "Exploded View". Remove flywheel. Secure flywheel (1) using Tool (A), and remove b ...

P014C, P014D, P015A, P015B A/F Sensor 1
DTC Logic DTC DETECTION LOGIC To judge the malfunction of A/F sensor 1, this diagnosis measures response time of the A/F signal computed by ECM from the A/F sensor 1 signal. The time is compensated by engine operating (speed and load), fuel feedback control constant, and the A/F sensor 1 tem ...

Fuel pump shut off system
To minimize the risk of fuel leakage when the engine stalls or when an airbag inflates upon collision, the fuel pump shut off system stops the supply of fuel to the engine. Follow the procedure below to restart the engine after the system is activated. Vehicles without a smart key system 1. Tu ...
