Trouble diagnosis for unusual pressure

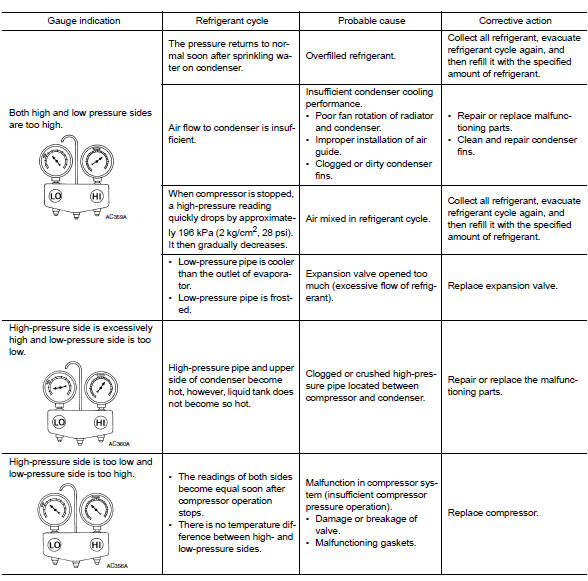

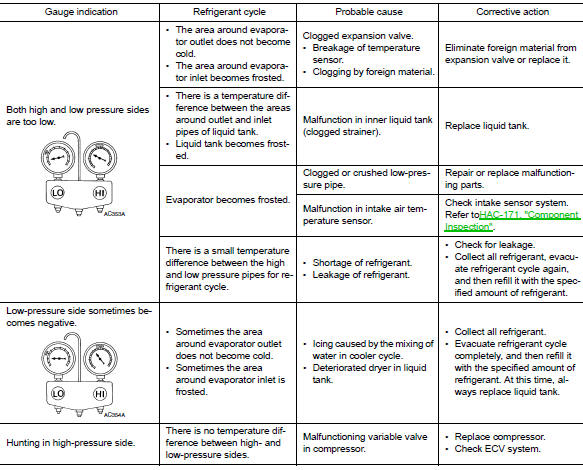

Diagnose using a manifold gauge whenever system’s high and/or low side pressure(s) is/are unusual. The marker above the gauge scale in the following tables indicates the standard (usual) pressure range. Refer to above table (Ambient air temperature-to-operating pressure table) since the standard (usual) pressure, however, differs from vehicle to vehicle.
Symptom table


Heater and air conditioning system symptoms
NoisePower windows do not operate with power window main switch
Diagnosis Procedure
1.Check bcm power supply and ground circuit
Check bcm power supply and ground circuit.
Refer to bcs-67, "diagnosis procedure" (with intelligent key) or bcs-120,
"diagnosis procedure" (without
intelligent key).
Is the inspection result normal?
Yes & ...
Cooling fan control
SYSTEM DIAGRAM
SYSTEM DESCRIPTION
ECM controls cooling fan speed corresponding to vehicle speed, engine coolant
temperature, refrigerant pressure,
air conditioner ON signal. Then control system has 3-step control
[HIGH/LOW/OFF].
Cooling Fan Operation
Cooling Fan Relay Operation
Whe ...
CSC(concentric slave cylinder)
Exploded View
Transaxle assembly
CSC (Concentric Slave Cylinder)
Removal and Installation
CAUTION:
Do not reuse CSC (Concentric Slave Cylinder). The CSC slides back
to the original position every
time the transaxle assembly is removed. This action may allow dust or
contamin ...
