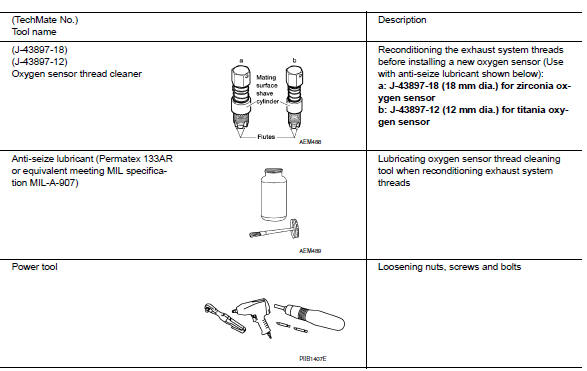

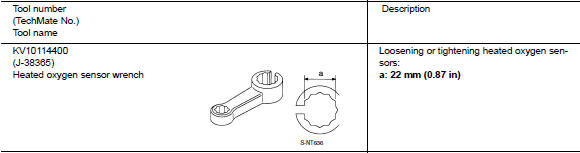

Special Service Tool
The actual shape of the tools may differ from those illustrated here.
Commercial Service Tool
Hvac branch line circuit
Diagnosis procedure
1.Check connector
Turn the ignition switch OFF.
Disconnect the battery cable from the negative terminal
Check the terminals and connectors of the a/c auto amp. For damage, bend
and loose connection (unit
side and connector side).
Is the inspection result normal?
...
If a warning message
is displayed
The multi-information display shows warnings of system malfunctions,
incorrectly performed operations, and messages that
indicate a need for maintenance. When a message is shown,
perform the correction procedure appropriate to the message.
