DTC Logic
DTC DETECTION LOGIC
| DTC No. | CONSULT screen terms (Trouble diagnosis content) | DTC detecting condition | Possible cause |
| P2118 | ETC MOT-B1 (Throttle actuator control motor current range/ performance) | ECM detects short in both circuits between ECM and throttle control motor. |
|
DTC CONFIRMATION PROCEDURE
1.PRECONDITIONING
If DTC Confirmation Procedure has been previously conducted, always perform the following procedure before conducting the next test.
>> GO TO 2.
2.PERFORM DTC CONFIRMATION PROCEDURE
Is DTC detected? YES >> Proceed to EC-428, "Diagnosis Procedure".
NO >> INSPECTION END
Diagnosis Procedure

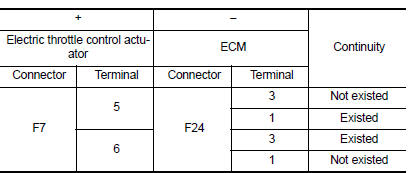

1.CHECK THROTTLE CONTROL MOTOR OUTPUT SIGNAL CIRCUIT
Is the inspection result normal? YES >> GO TO 2.
NO >> Repair or replace error-detected parts.
2.CHECK THROTTLE CONTROL MOTOR
Check the throttle control motor. Refer to EC-429, "Component Inspection (Throttle Control Motor)".
Is the inspection result normal? YES >> Check intermittent incident. Refer to GI-39, "Intermittent Incident".
NO >> Replace electric throttle control actuator. Refer to EM-27, "Removal and Installation".
Component Inspection (Throttle Control Motor)

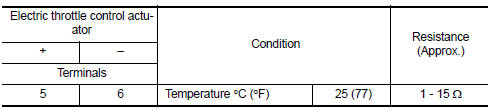

1.CHECK THROTTLE CONTROL MOTOR
Is the inspection result normal? YES >> INSPECTION END
NO >> Replace electric throttle control actuator. Refer to EM-27, "Removal and Installation".
