Nissan Sentra Service Manual: Ecu diagnosis information

Audio unit

Reference value

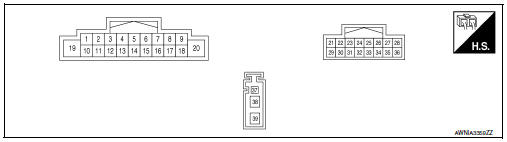

TERMINAL LAYOUT

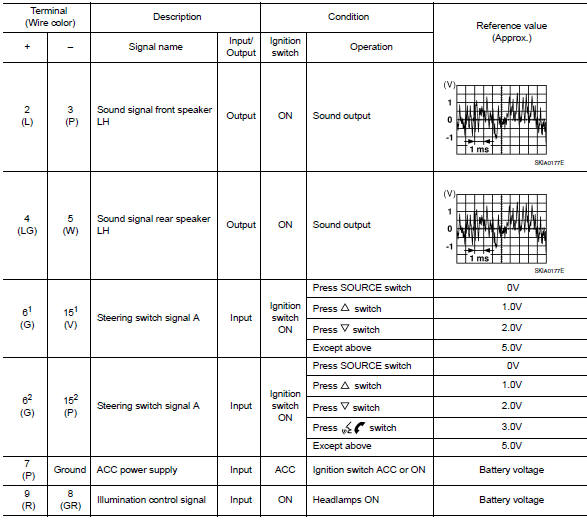

PHYSICAL VALUES

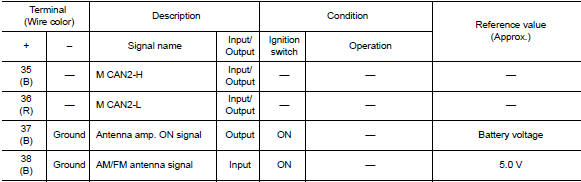

PHYSICAL VALUES



1: without BluetoothВ®

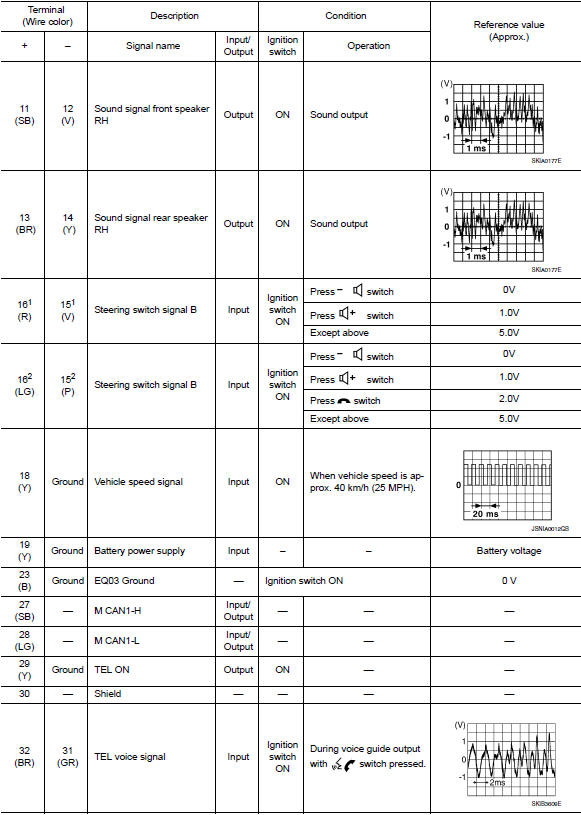

1: without BluetoothВ®

2: with BluetoothВ®

BluetoothВ® control unit

Reference value

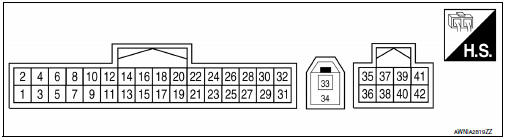

TERMINAL LAYOUT

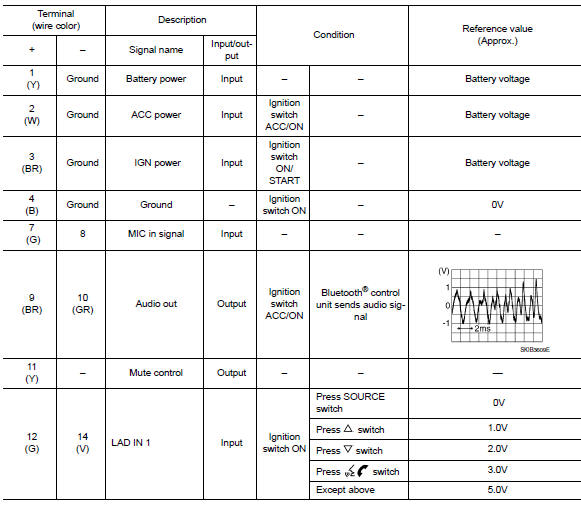

PHYSICAL VALUES

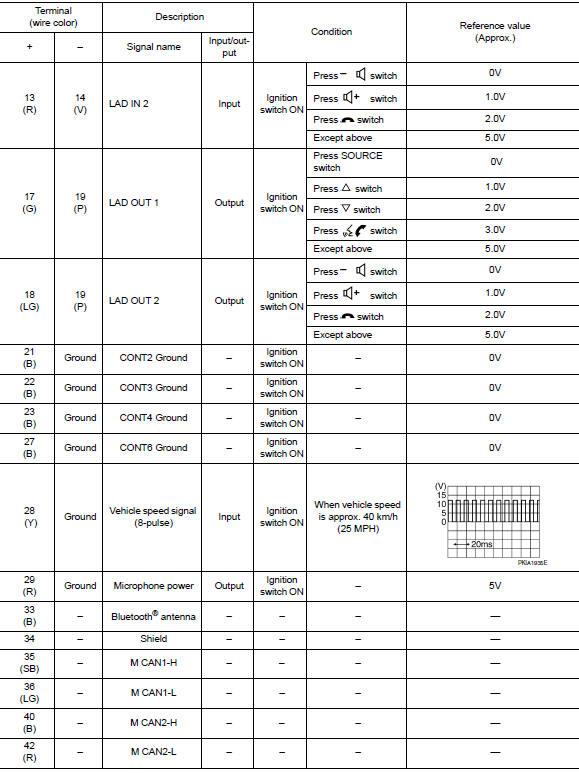

PHYSICAL VALUES


Wiring diagram


System description
Component parts Component parts location Front tweeter lh (if equipped) Steering switches Audio unit Front tweeter rh (if equipped) Microphone (if equipped) Front door speaker lh ...

Wiring diagram
Base audio Wiring diagram ...
