Nissan Sentra Service Manual: Cluster lid C

Removal and Installation - Cluster Lid C

REMOVAL

  1. Remove cluster lid C lower. Refer to IP-20, "Removal and Installation - Cluster Lid C Lower".
  2. Remove the cluster lid C screws (A).


  1. Disconnect the harness connector from cluster lid C.
  2. Remove the center ventilator grilles assembly and hazard switch from the cluster lid C (if necessary).

    Refer to VTL-9, "CENTER VENTILATOR GRILLE : Removal and Installation" (Center Ventilator Grilles) and EXL-129, "Removal and Installation" (Hazard Switch).

INSTALLATION

Installation is in the reverse order of removal.

Removal and Installation - Cluster Lid C Lower

REMOVAL

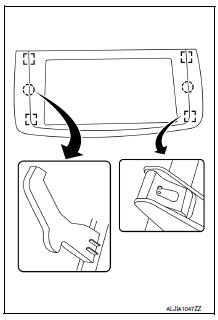

  1. Release cluster lid C lower clips and pawls using a suitable tool.

Metal clip Pawl


Metal clip



  1. Remove cluster lid C lower.

INSTALLATION

Installation is in the reverse order of removal.
