Nissan Sentra Service Manual: Wiring diagram

Base audio

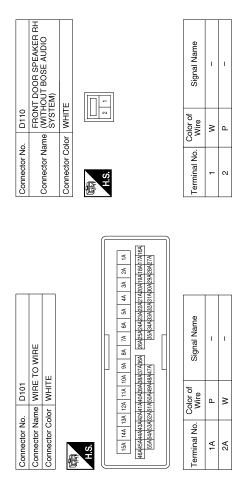

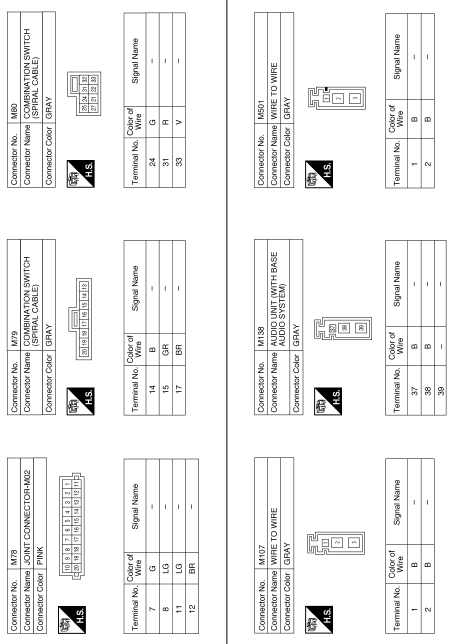

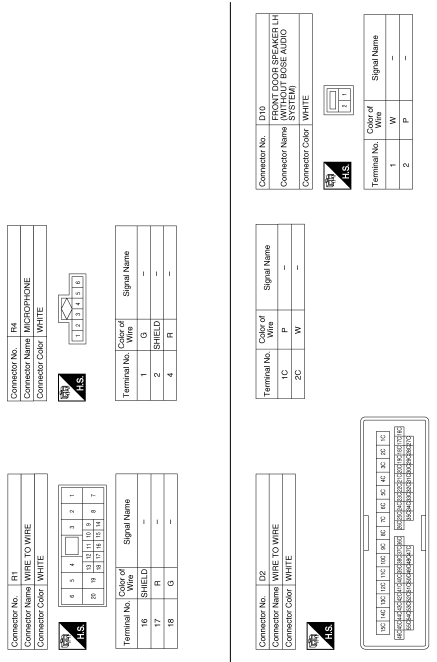

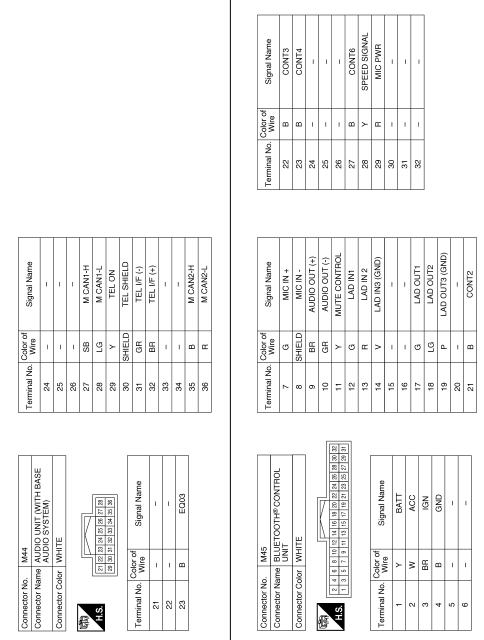

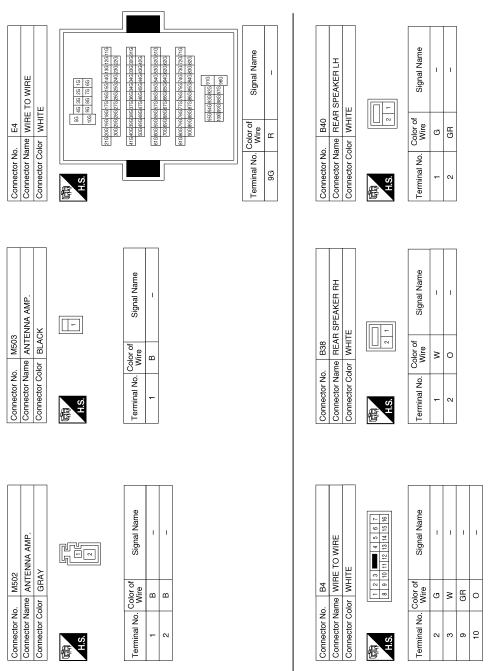

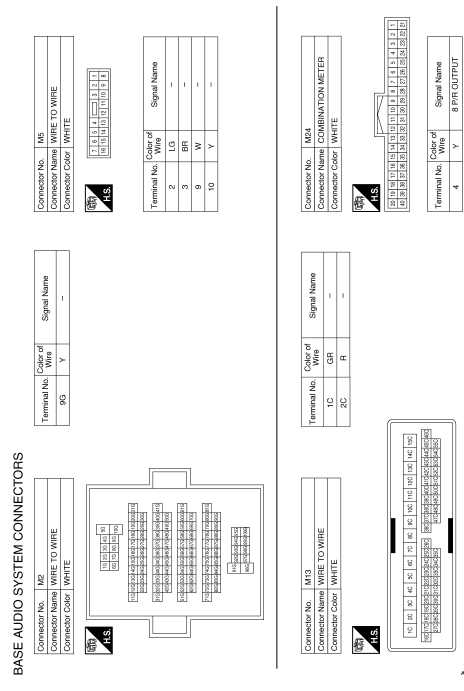

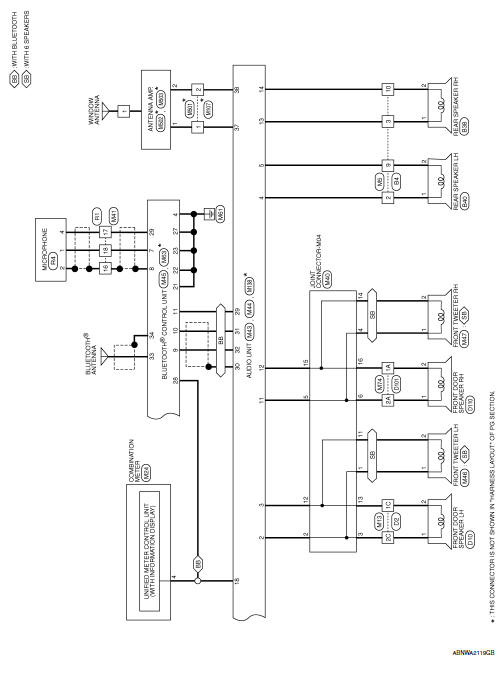

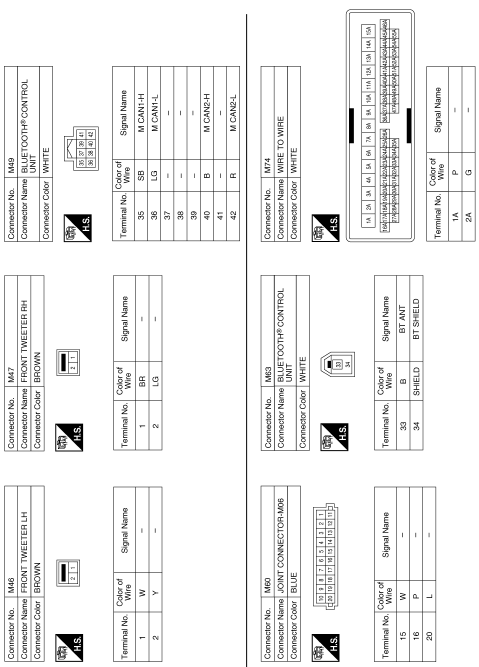

Wiring diagram










Basic inspection


Ecu diagnosis information

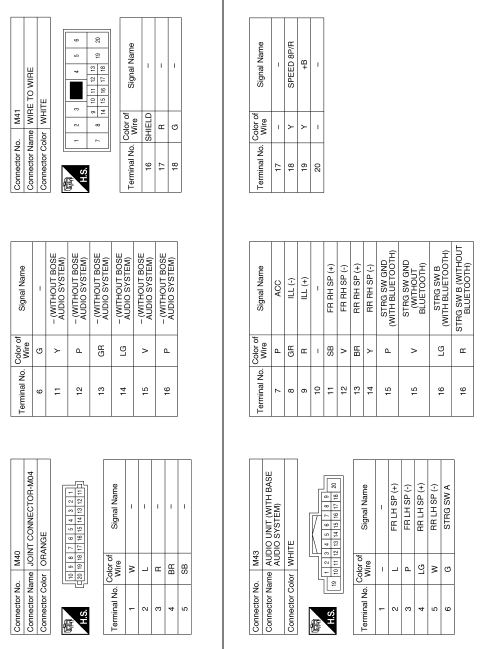

Audio unit Reference value TERMINAL LAYOUT PHYSICAL VALUES 1: without BluetoothВ® 2: with BluetoothВ® BluetoothВ® control unit Reference value TERMINAL LAYOUT PHYSICAL VALUE ...

Basic inspection
Diagnosis and repair workflow Work flow OVERALL SEQUENCE DETAILED FLOW 1.GET INFORMATION FOR SYMPTOM Get detailed information from the customer about the symptom (the condition and the envi ...

Other materials:

Main line between ipdm-e and dlc circuit
Diagnosis procedure 1.Check connector Turn the ignition switch off. Disconnect the battery cable from the negative terminal. Check the following terminals and connectors for damage, bend and loose connection (connector side and harness side). Harness connector E4 Harness connec ...
