Nissan Sentra Service Manual: Wiring diagram

Power socket

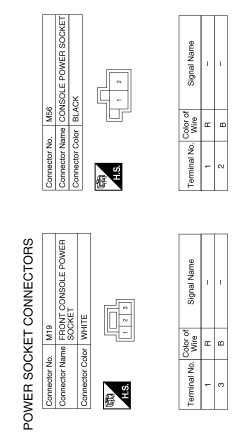

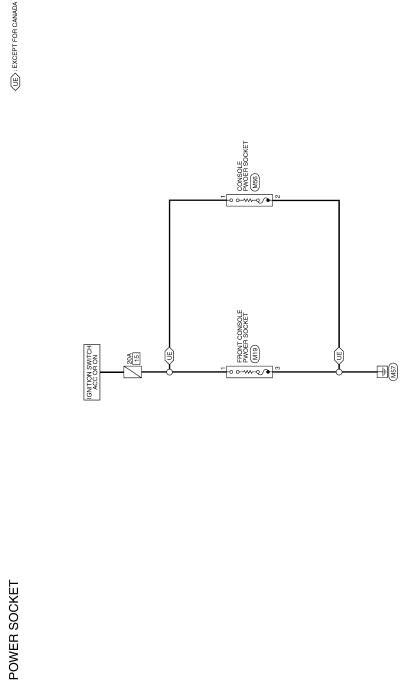

Wiring Diagram


Removal and installation


Precaution
Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT PRE-TENSIONER" The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE- ...

Removal and installation
Power socket Removal and installation Front console power socket Removal Remove the cvt/mt shift selector finisher. Refer to ip-14, "exploded view". Remove cap from the front con ...

Other materials:

Water outlet
Exploded View CVT MODELS Water control valve Rubber ring Radiator hose (upper) Clamp Water outlet CVT oil warmer hose (outlet) Heater hose (inlet) Heater hose (outlet) Electric throttle control actuator hose (outlet) Electric throttle control actuator hose (inlet) E ...

Precaution for supplemental restraint system (SRS) "air bag" and "seat belt pre-tensioner"
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain types of collision. Information necessary to service the system ...

Harness connector
Description Harness connector (tab-locking type) The tab-locking type connectors help prevent accidental looseness or disconnection. The tab-locking type connectors are disconnected by pushing or lifting the locking tab(s). Refer to the figure below. Refer to the next page for desc ...
