Nissan Sentra Service Manual: Wiper and washer system symptoms

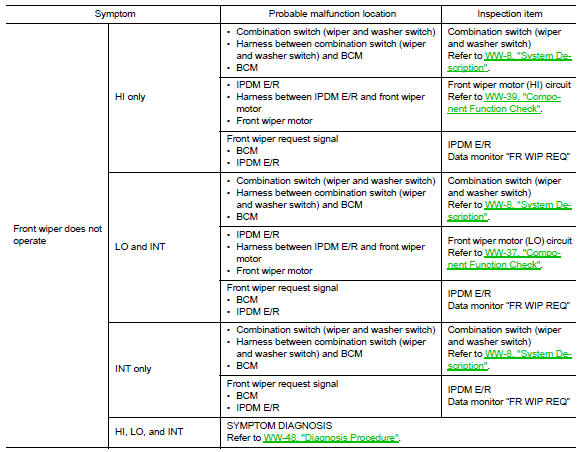

Symptom table

Caution:

Perform the self-diagnosis with consult before performing the diagnosis by symptom. Perform the diagnosis by dtc if dtc is detected.


Front wiper does not operate


Symptom diagnosis
...

Front wiper does not operate
Description The front wiper does not operate under any operation conditions Diagnosis procedure Regarding wiring diagram information, refer to ww-24, "wiring diagram - with intelligent key&q ...
