Nissan Sentra Service Manual: Windshield glass

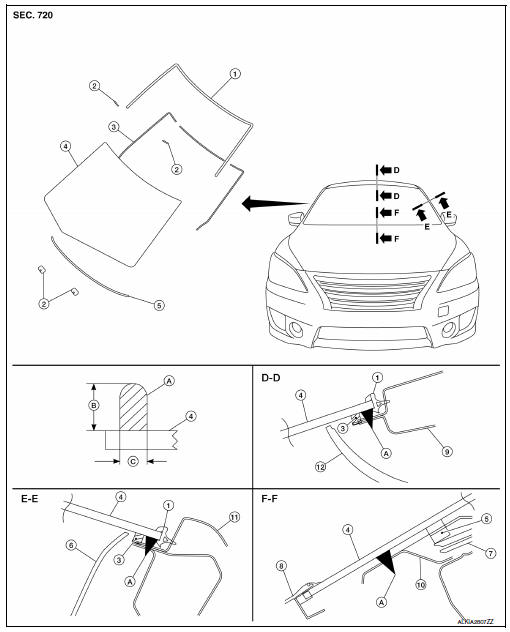

Exploded View


  1. Windshield glass molding
  2. Spacer
  3. Rubber dam
  4. Windshield glass
  5. Windshield insulator
  6. Front pillar finisher
  7. Instrument panel
  8. Cowl top cover
  9. Roof panel
  10. Cowl top
  11. Body side outer
  12. Headlining
  1. Adhesive
  2. 12 +2.0 mm (0.5 +0.08 in)
  3. 7 +2.0 mm (0.3 +0.08 in)

Removal and Installation

REMOVAL

  1. Partially remove the headlining (front edge). Refer to INT-40, "Removal and Installation".
  2. Remove inside mirror. Refer to MIR-16, "Removal and Installation".
  3. Remove the cowl top cover. Refer to EXT-26, "Removal and Installation".
  4. Remove windshield glass using piano wire or power cutting tool (A) and an inflatable pump bag (B).


WARNING:

When cutting the glass from the vehicle, always wear safety glasses and heavy gloves to help prevent glass splinters from entering your eyes or cutting your hands.

CAUTION:

INSTALLATION

Installation is in the reverse order of removal.

WARNING:

CAUTION:

Primer Application
Primer Application

  1. Vehicle center
  2. Inside mirror base
  3. Windshield glass
  4. Spacer
  5. Windshield insulator
  6. Rubber dam
  7. Front pillar outer panel
  8. Cowl top
  9. Roof panel
  10. Windshield glass upper molding
  1. Primer portion
  2. 8.0 mm (0.31 in)
  3. 20 mm (0.8 in)
  4. 30 mm (1.2 in)

REPAIRING WATER LEAKS FOR WINDSHIELD

Removal and installation
...

Front door glass
