Nissan Sentra Service Manual: Washer tank

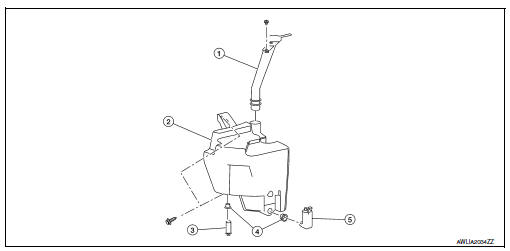

Exploded view
- Washer tank inlet
- Washer tank
- Washer level switch
- Washer tank seal
- Washer pump
Removal and installation
REMOVAL
- Drain the washer fluid.
- Remove the front under cover. Refer to ext-30, "front under cover : removal and installation".
- Remove the fender protector (rh). Refer to ext-28, "fender protector : removal and installation - front fender protector".
- Remove the front combination lamp (rh). Refer to exl-119, "removal and installation".
- Disconnect the harness connectors from the washer pump and washer level switch.
- Disconnect the washer tube from the washer pump.
- Remove the washer tank bolts and the washer tank.
- Remove the washer pump, washer level switch, and washer tank seals from the washer tank (if necessary).
INSTALLATION
Installation is in the reverse order of removal.
NOTE:
- After installation, add water to the top of the washer tank inlet to check that no leaks exist.
- Fill washer tank with specified amount of fluid. Refer to WW-64, "Specifications".
Washer pump
Removal and Installation
The washer pump is serviced as an assembly with the washer tank. Refer to WW-51, "Removal and Installation".
Washer level switch
Removal and installation
The washer level switch is serviced as an assembly with the washer tank. Refer to WW-51, "Removal and Installation".
Washer nozzle & tube
Exploded view
Check valve
Washer tube
Washer tank
Washer pump
Washer nozzle
Clip
Washer nozzle
Washer nozzle : removal and installation
REMOVAL
Disconnect the washer nozzle ...
