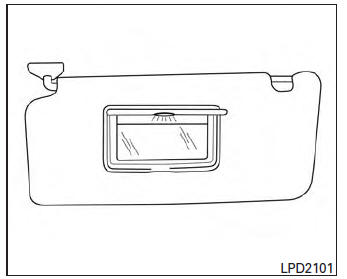

To access the vanity mirror, pull the sun visor down and flip open the mirror cover. Some vanity mirrors are illuminated and turn on when the mirror cover is open.
Sun visors
Card holder (driver’s side only)Basic inspection
Diagnosis and repair work flow
Work flow
OVERALL SEQUENCE
DETAILED FLOW
1.GET INFORMATION FOR SYMPTOM
Get detailed information from the customer about the symptom (the
condition and the environment when
the incident/malfunction occurs).
Check operation condition of the function th ...
Rocker cover
Exploded View
Oil filler cap
Rocker cover protector
Oil filler tube
O-ring
Rocker cover
Rocker cover gasket
Refer to INSTALLATION
Removal and Installation
REMOVAL
Remove intake manifold. Refer to EM-27, "Exploded View".
Remove rocker cover protector.
Re ...
Front fog lamp circuit
Description
The ipdm e/r (intelligent power distribution module engine room) controls the
front fog lamp relay based on
inputs from the bcm over the can communication lines. When the front fog lamp
relay is energized, power
flows from the front fog lamp relay in the ipdm e/r to the front fog ...
