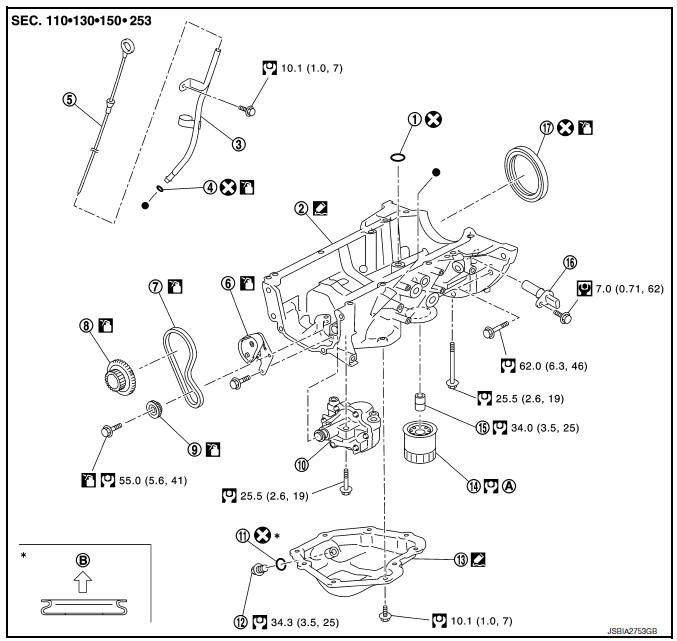

OIL PUMP


  1. O-ring
  2. Oil pan (upper)
  3. Oil level gauge guide
  4. O-ring
  5. Oil level gauge
  6. Oil pump chain tensioner
  7. Oil pump drive chain
  8. Crankshaft sprocket
  9. Oil pump sprocket
  10. Oil pump
  11. Drain plug washer
  12. Drain plug
  13. Oil pan (lower)
  14. Oil filter
  15. Connector bolt
  16. Crankshaft position sensor
  17. Rear oil seal
  1. Refer to LU-10, "Removal and Installation"
  2. Oil pan side

Removal and Installation

REMOVAL

  1. Remove engine under cover. Refer to EXT-16, "Exploded View".
  2. Remove air cleaner and air duct. Refer toEM-25, "Removal and Installation".
  3. Remove fender protector. Refer to EXT-28, "FENDER PROTECTOR : Removal and Installation - Front Fender Protector".
  4. Remove timing chain. Refer to EM-49, "Removal and Installation".
  5. Remove oil pump.

(1) : Oil pump

(2) : Oil pan (upper)

INSTALLATION


INSTALLATION

CAUTION:

Do not reuse O-rings or washers.

Installation is in the reverse order of removal.

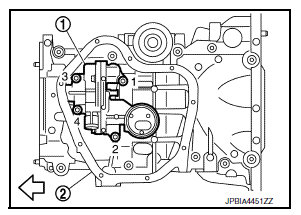

Oil Pump

(1) : Oil pump

(2) : Oil pan (upper)

Inspection


Inspection

INSPECTION AFTER INSTALLATION

  1. Check the engine oil level. Refer to LU-7, "Inspection".
  2. Start the engine, and check that there are no leaks of engine oil.
  3. Stop the engine and wait for 10 minutes.
  4. Check the engine oil level, and adjust the level. Refer to LU-7, "Inspection".
Removal and installation
OIL COOLER Exploded View M/T models Clamp Water hose Clamp Water hose Oil cooler O-rings CVT models Clamp Water hose Clamp Water hose Water hose clip Oil coole ...

Service data and specifications (SDS)
Oil pressure *: Engine oil temperature at 80В°C (176В°F) Oil Capacity ...
