Nissan Sentra Service Manual: Unit disassembly and assembly

Moonroof unit assembly

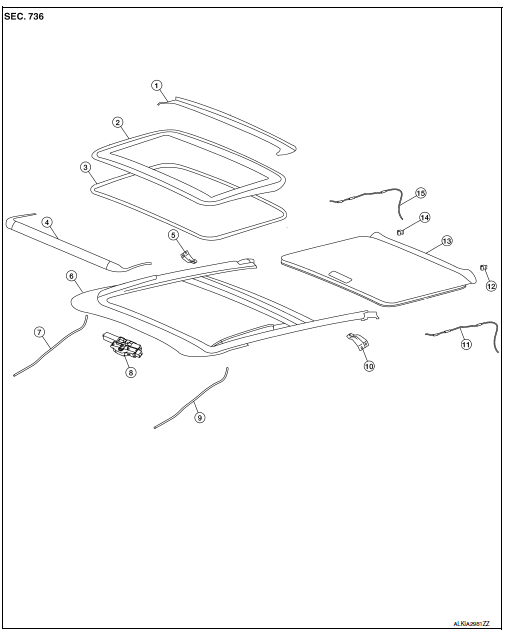

Exploded view


  1. Drain assembly
  2. Glass lid
  3. Weatherstrip
  4. Moonroof rail assembly
  5. Drain hose front (RH)
  6. Moonroof motor assembly
  7. Drain hose front (LH)
  8. Side bracket (LH)
  9. Drain hose rear (LH)
  10. Sunshade stopper (LH)
  11. Sunshade
  12. Sunshade stopper (RH)
  13. Drain hose rear (RH)

Disassembly and assembly

DISASSEMBLY

  1. Remove the moonroof unit assembly. Refer to RF-45, "Removal and Installation".
  2. Remove the sunshade. Refer to RF-47, "Removal and Installation".
  3. Remove the glass lid. Refer to RF-39, "Removal and Installation".
  4. Remove the wind deflector. Refer to RF-49, "Removal and Installation".
  5. Remove the moonroof motor assembly. Refer to RF-41, "Removal and Installation".

ASSEMBLY

Assembly is in the reverse order of disassembly.

Moonroof switch
Removal and installation REMOVAL Remove the map lamp. Refer to INL-52, "Removal and Installation". Release the pawls and remove the moonroof switch finisher (1). : Pawl Releas ...
