Nissan Sentra Service Manual: Unbalance steering wheel turning force (torque variation)
Description
Unbalance steering wheel turning force (torque variation).
Diagnosis Procedure
1.PERFORM SELF-DIAGNOSIS
With CONSULT
-
Turn the ignition switch OFF to ON.
-
Perform EPS self-diagnosis.
Is any DTC detected? YES >> Check the DTC. Refer to STC-14, "DTC Index".
NO >> GO TO 2.
2.CHECK THE ILLUMINATION OF THE EPS WARNING LAMP
Check the EPS warning lamp while the engine is started.
Does the EPS warning lamp turn OFF? YES >> GO TO 3.
NO >> Refer to STC-31, "Diagnosis Procedure".
3.CHECK STEERING COLUMN AND STEERING GEAR
Check the steering column assembly and steering gear assembly.
-
Steering column assembly. Refer to ST-12, "Exploded View".
-
Steering gear assembly. Refer to ST-14, "Exploded View".
Is the inspection result normal? YES >> GO TO 4.
NO >> Repair or replace the specific malfunctioning part.
4.CHECK EPS CONTROL UNIT SIGNAL (1)
With CONSULT
-
Start the engine.
CAUTION:
Never drive the vehicle.
-
Turn steering wheel from full left stop to full right stop.
-
Select ASSIST LEVEL in DATA MONITOR in EPS.
Dose the item in DATA MONITOR maintain 100%? YES >> GO TO 7.
NO >> GO TO 5.
5.CHECK EPS CONTROL UNIT SIGNAL (2)
With CONSULT
Select BATTERY VOLT in DATA MONITOR in EPS.
Does the item in DATA MONITOR indicate 10 V or more? YES >> GO TO 6.
NO >> Perform trouble diagnosis of EPS control unit power supply and ground. Refer to STC-22, "Diagnosis Procedure".
6.CHECK EPS CONTROL UNIT SIGNAL (3)
With CONSULT
-
Select ASSIST LEVEL in DATA MONITOR in EPS.
-
Stop the EPS system until the item in DATA MONITOR becomes 100%.
NOTE:
While stopping the EPS system, do not turn steering wheel.
-
Check that the symptom continues.
Dose the symptom continue? YES >> GO TO 7.
NO >> The assist torque decreases because of protection function. This is not malfunction. Inspection End.
7.Check EPS Control unit signal (4)
With CONSULT
-
Start the engine.
CAUTION:
Never drive the vehicle.
-
Turn steering wheel from full left stop to full right stop.
-

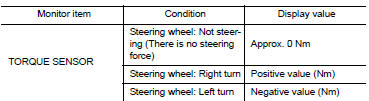

Select TORQUE SENSOR in DATA MONITOR in EPS.
-
Perform the torque sensor inspection.
Is the inspection result normal? YES >> GO TO 9.
NO >> GO TO 8.
8.CHECK EPS MOTOR
Perform the trouble diagnosis of EPS motor. Refer to STC-27, "Diagnosis Procedure".
Is the inspection result normal? YES >> GO TO 9.
NO >> Repair or replace the specific malfunctioning part.
9.CHECK STEERING WHEEL TURNING FORCE
Check the steering wheel turning force. Refer to ST-5, "Inspection".
Is the inspection result normal? YES >> Inspection End.
NO >> Check the steering wheel turning force for mechanical malfunction. Refer to ST-5, "Inspection".
