Nissan Sentra Service Manual: Tow Truck Towing

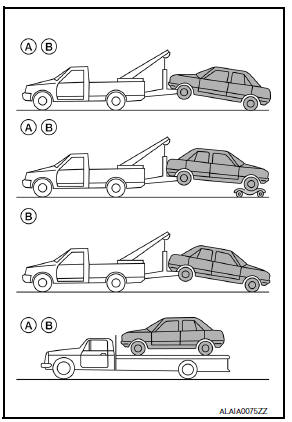

NISSAN recommends that vehicle be towed with driving (front) wheels off the ground or that a dolly be used.
- CVT: Continuously Variable Transmission
- M/T: Manual transmission
CAUTION:
- All applicable state or Provincial laws and local laws regarding the towing operation must be obeyed.
- It is necessary to use proper towing equipment to avoid possible damage to the vehicle during towing operation. Towing is in accordance with Towing Procedure Manual at dealer.
- Always attach safety chains before towing.
- When towing, check that the transmission, steering system and powertrain are in good order. If any unit is damaged, dollies must be used.
- When towing CVT or M/T models with the rear wheels on the ground (if you do not use towing dollies): Always release the parking brake.
- When towing CVT models or M/T models with the front wheels on towing dollies:
- Turn the ignition switch to the OFF position, and secure the steering wheel in a straight ahead position with a rope or similar device. Never secure the steering wheel by turning the ignition switch to the LOCK position. This may damage the steering lock mechanism.
- Move the selector lever to the N (Neutral) position.
- Observe the following restricted towing speeds and distances for manual transmissions (M/T) only when any wheels are touching the ground:
- Speed: Below 80 km/h (50 MPH)
- Distance: Less than 80 km (50 miles).

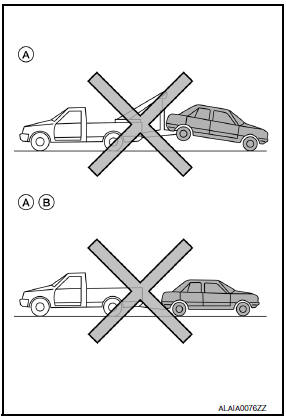

- Never tow CVT models with the front wheels on the ground or four wheels on the ground (forward or backward), as this may cause serious and expensive damage to the transmission. If it is necessary to tow the vehicle with the rear wheels raised, always use towing dollies under the front wheels.
- Never tow a CVT model or an M/T model from the rear (that is backward) with four wheels on the ground. This may cause serious and expensive damage to the transaxle.
