Nissan Sentra Service Manual: TCM

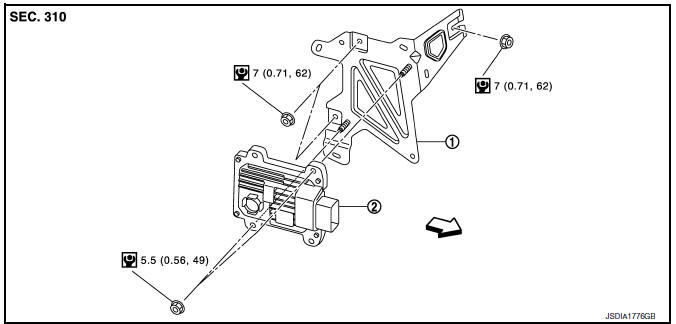

Exploded View
- Br
acket
- TCM
: Vehicle front
: NВ·m (kg-m, in-lb)
Removal and Installation
CAUTION:
- When replacing TCM, note the “CVTF DETERIORATION DATE” value displayed on CONSULT “CONFORM CVTF DETERIORTN” in MAINTENANCE BOOKLET, before start the operation.
- Do not impact the TCM when removing or installing TCM.
- Before replacing TCM, perform "ADDITIONAL SERVICE WHEN TCM". Refer to TM-142, "Work Procedure".
- Before replacing TCM and transaxle assembly as a set, perform "ADDITIONAL SERVICE WHEN REPLACING TCM AND TRANSAXLE ASSEMBLY". Refer to TM-144, "Work Procedure".
NOTE:
When replacing TCM and transaxle assembly as a set, replace transaxle assembly first and then replace TCM. Refer to TM-142, "Description".
REMOVAL
- Remove the battery. Refer to PG-50, "Removal and Installation (Battery)".
- Remove the air cleaner case assembly. Refer to EM-25, "Removal and Installation".
- Disconnect the TCM harness connector.
- Remove the TCM.
- Remove the bracket.
INSTALLATION
Installation is the reverse order of removal.
Adjustment
ADJUSTMENT AFTER INSTALLATION
When replaced the TCM, perform “ADDITIONAL SERVICE WHEN REPLACING TCM”. Refer to TM-142, "Description".
