Nissan Sentra Service Manual: System description

Component parts

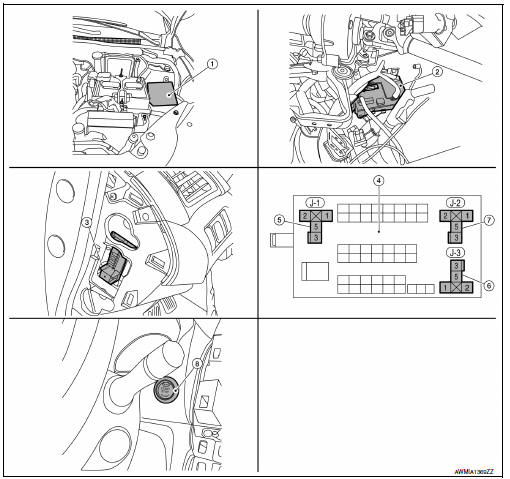

Component parts location


  1. Ipdm e/r (contains ignition relay-1)
  2. Bcm (view with instrument panel removed)
  3. Fuse block (j/b) (front)
  4. Fuse block (j/b) (back)
  5. Blower relay
  6. Ignition relay-2
  7. Accessory relay-1
  8. Push-button ignition switch

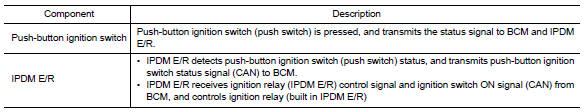

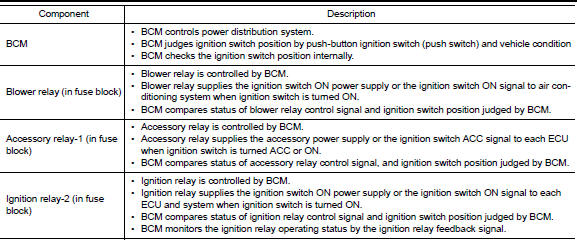

Component description


System


System

Power distribution system

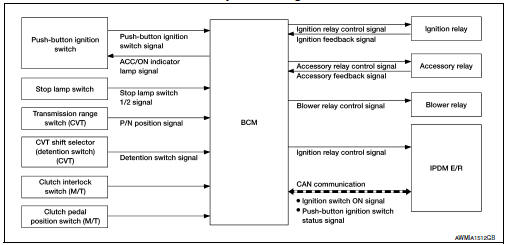

Power distribution system : system diagram

Power distribution system : system description


Power distribution system : system description

System description

Note:

The engine switch operation changes due to the conditions of brake pedal, selector lever and vehicle speed.

Battery saver system

When all the following conditions are met for 30 minutes, the battery saver system will cut off the power supply to prevent battery discharge.

Reset condition of battery saver system

In order to prevent the battery from discharging, the battery saver system will cut off the power supply when all doors are closed, the selector lever is in p (park) position and the ignition switch is left in the acc or on position for 30 minutes. If any of the following conditions are met the battery saver system is released and the steering will change automatically to lock position from off position.

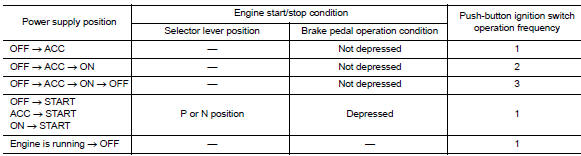

Power supply position change table by push-button ignition switch operation

The power supply position changing operation can be performed with the following operations.

Note:

Vehicle speed: less than 4 km/h (2.5 MPH)

Vehicle speed: 4 km/h (2.5 Mph) or more


Vehicle speed: 4 km/h (2.5 Mph) or more

Emergency stop operation


Emergency stop operation
