Noise, vibration and harshness (NVH) troubleshooting

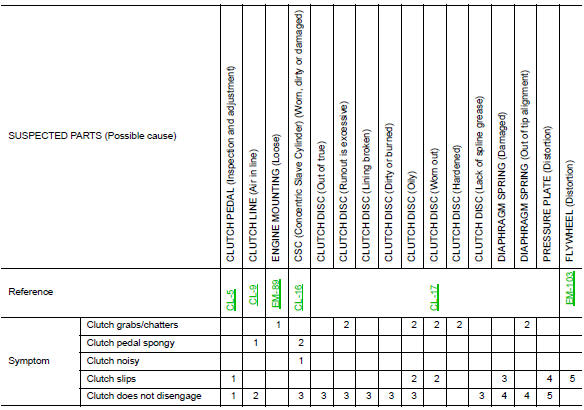

NVH Troubleshooting Chart
Use the chart below to find the cause of the symptom. The numbers indicate the order of the inspection. If necessary, repair or replace these parts.
Preparation
Special Service Tools
The actual shape of the tools may differ from those illustrated here
Commercial Service Tools
...
