Nissan Sentra Service Manual: Symptom diagnosis

Charging system

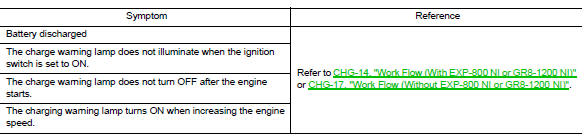

Symptom table

Removal and installation


S terminal circuit
Description The output voltage of the generator is controlled by the IC regulator at terminal “S” detecting the input voltage from battery. The “S” terminal circuit detects ...

Removal and installation
Generator Exploded view Thermostat housing Generator bolt (upper) Generator bolt (lower) Generator B” terminal harness “B” terminal nut Generator harness connector ...

Other materials:

Windshield wiper and washer switch
Switch operation Type A Type B The windshield wiper and washer operates when the ignition switch is placed in the ON position. Push the lever down to operate the wiper at the following speed: Intermittent (INT) — intermittent operation can be adjusted by turning the knob A . Lo ...

Diagnosis and repair work flow
Work Flow NOTE: The Signal Tech II Tool (J-50190) can be used to perform the following functions. Refer to the Signal Tech II User Guide for additional information. Activate and display TPMS transmitter IDs Display tire pressure reported by the TPMS transmitter Read TPMS DTCs Register ...

C1601 Battery power supply
DTC Logic DTC DETECTION LOGIC DTC Display item Malfunction detected condition Possible cause C1601 BATTERY VOLT When a power supply voltage to the EPS control unit is maintained at 17.5 V or more or at less than 9 V continuously for five second or more. ...
