Nissan Sentra Service Manual: Sunshade

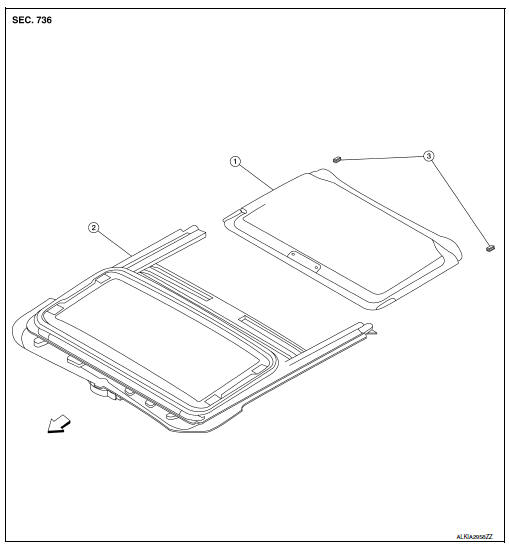

Exploded View
- Sunshade
- Moonroof unit assembly
- Sunshade stopper (LH/RH)
Front
Removal and Installation
REMOVAL
- Remove the headlining. Refer to INT-40, "Removal and Installation".
- Remove the sunshade stoppers (1) (LH/RH) from the moonroof unit assembly side rails (2).
: Front
- Remove sunshade from rear end of moonroof unit assembly.
INSTALLATION
Installation is in the reverse order of removal.
Moonroof unit assembly
Inspection
WIND DEFLECTOR
Open glass lid fully
Visually check for proper installation, damaged/deteriorated components,
or foreign objects within mechanism.
Correct as required for smoot ...
Wind deflector
Exploded view
Spring
Wind deflector
Roof panel
Sunshade
Glass lid
Front
Removal and installation
REMOVAL
Open the glass lid.
Release the springs (LH/RH), then remove the ...
