Nissan Sentra Service Manual: Steering angle sensor

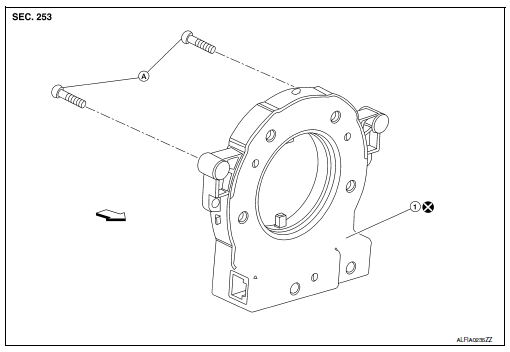

Exploded View
-
Steering angle sensor
-
Screw
Front
Removal and Installation
REMOVAL
-
Remove spiral cable assembly. Refer to SR-16, "Removal and Installation".
-
Remove the two screws and the steering angle sensor from spiral cable.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
Do not reuse steering angle sensor.
Perform the neutral position adjustment of the steering angle sensor. Refer to BRC-54, "Work Procedure".
VDC off switch
Removal and Installation
REMOVAL
Remove the instrument lower panel LH. Refer to IP-21,
"Removal and Installation".
Remove the switch plate screws and remove the switch plate. ...
