Nissan Sentra Service Manual: Starting system (without intelligent key)

Nissan Sentra Service Manual / Engine / Starting system / Wiring diagram / Starting system (without intelligent key)

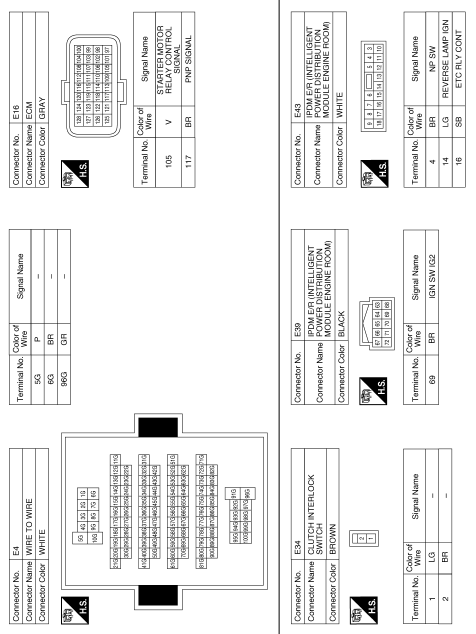

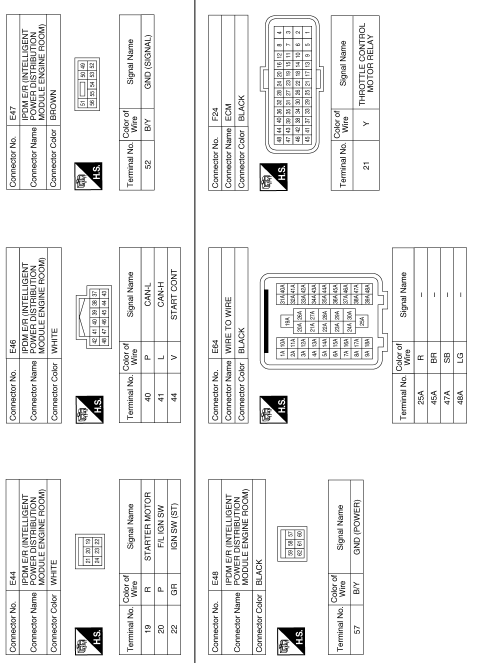

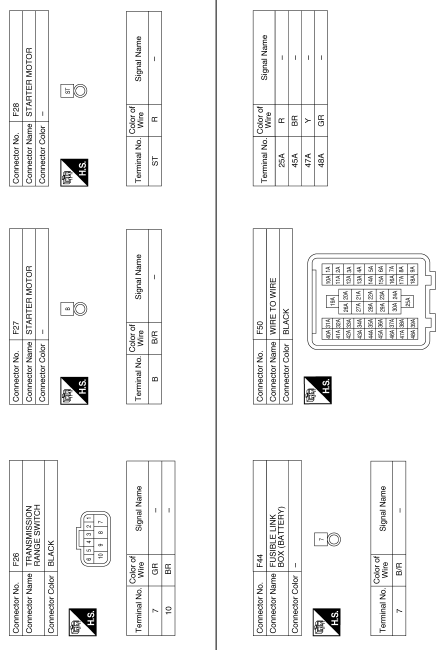

Wiring Diagram





Basic inspection


Starting system (with intelligent key)
Wiring Diagram ...

Basic inspection
Diagnosis and repair workflow Work Flow (With GR8-1200 NI) STARTING SYSTEM DIAGNOSIS WITH GR8-1200 NI To test the starting system, use the following special service tool: GR8-1200 NI Multitaski ...
