Speedometer

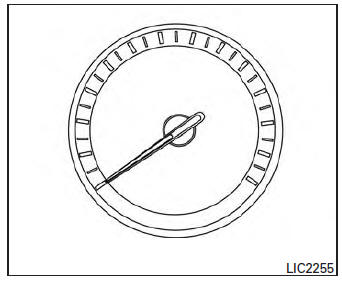

The speedometer indicates the vehicle speed.
Odometer/Twin trip odometer

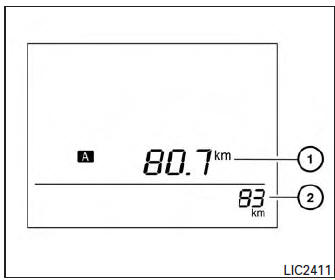

The odometer 2 and the twin trip odometer 1 are displayed when the ignition switch is placed in the ON position.
The odometer records the total distance the vehicle has been driven.
The twin trip odometer records the distance of individual trips.
To switch between the odometer and the twin trip
odometers press the button on the
steering
wheel.
Changing the display:
Push the button on the steering
wheel to
change the display as follows:
Accel guide/Average fuel economy→Instant fuel
economy/Average fuel economy → Average fuel
economy→Average speed→Distance to empty
→ Trip A → Trip B
Resetting the trip odometer:
Push the button on the steering
wheel for
more than 1 second to reset the currently displayed
trip odometer to zero.
Loose fuel cap warning message

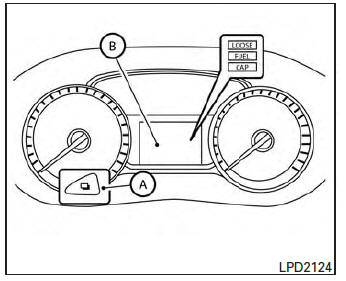

Push the reset button A for more than 1 second to reset the LOOSE FUEL CAP warning message B after the fuel cap has been tightened.
For additional information see “Fuel-filler cap” in the “Pre-driving checks and adjustments” section of this manual.
Check tire pressure warning message

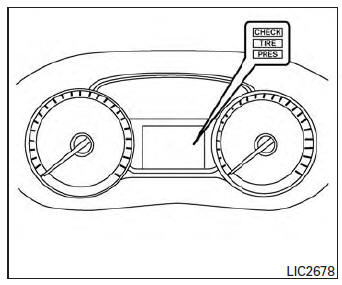

The CHECK TIRE PRES warning message is displayed when the low tire pressure warning light is illuminated and low tire pressure is detected.
Check and adjust the tire pressure to the recommended COLD tire pressure shown on the Tire and Loading Information label. The CHECK TIRE PRES warning message turns off when the low tire pressure warning light turns off.
The low tire pressure warning light remains illuminated until the tires are inflated to the recommended COLD tire pressure. The CHECK TIRE PRES warning message is displayed each time the ignition switch is placed in the ON position as long as the low tire pressure warning light remains illuminated. For more information see “Low tire pressure warning light” in the “Instruments and controls” section, “Tire Pressure Monitoring System (TPMS)” in the “Starting and driving” and “Wheels and tires” section in the “Maintenance and do-it-yourself” section of this Owner’s Manual.
