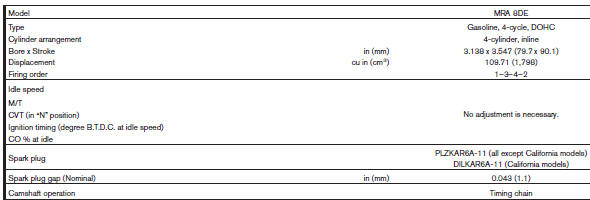

Engine
This spark ignition system complies with the Canadian standard ICES-002.

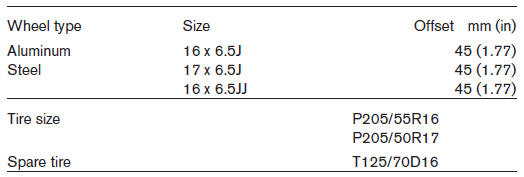

Wheels and tires

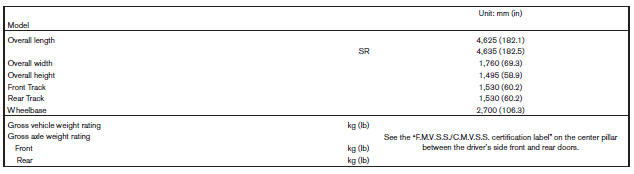

Dimensions and weights
Low tire pressure warning lamp
Symptom Table
Low tire pressure warning lamp symptom chart
Note:
If tire pressure sensor wake-up operation is not completed for two or more
tire pressure sensors, the applicable
low tire pressure warning lamp blinking patterns are displayed continuously.
(Example: blinks once/off/bl ...
Tcm branch line circuit
Diagnosis procedure
1.Check connector
Turn the ignition switch off.
Disconnect the battery cable from the negative terminal.
Check the following terminals and connectors for damage, bend and loose
connection (unit side and connector
side).
Tcm
Harness connector f50
Harness co ...
Brake booster
Exploded View
Master cylinder assembly
Brake booster
Lock nut
Clevis
Gasket
Spacer
Removal and installation
REMOVAL
Remove cowl top and cowl top extension. Refer to EXT-26, "Removal and
Installation".
Remove air duct and air cleaner case. Refer to EM-25, &qu ...
