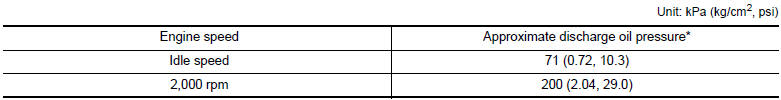

Oil pressure

*: Engine oil temperature at 80В°C (176В°F)

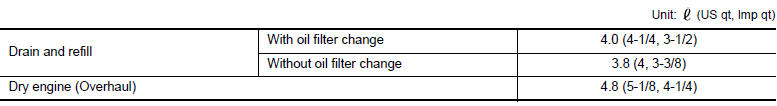

Oil Capacity

Unit disassembly and assemblySystem
System Diagram
System Description
FRONT WIPER CONTROL (BASIC)
BCM detects the combination switch position by the combination switch
reading function.
BCM transmits the front wiper request signal to the IPDM E/R using CAN
communication.
IPDM E/R controls the integrated front wipe ...
Front bumper
Exploded view
Grommet
Front bumper side bracket (RH)
Front under cover
Front air spoiler
Front bumper reinforcement
Front energy absorber
Front fog lamp (RH) (if equipped)
Front bumper lower grille
Front bumper fascia finisher (RH)
(if equipped)
Front fog lamp finisher (R ...
Diagnosis system (ipdm e/r) (without intelligent key system)
Diagnosis Description
AUTO ACTIVE TEST
Description
In auto active test, the IPDM E/R sends a drive signal to the following
systems to check their operation.
Front wiper (LO, HI)
Parking lamp
License plate lamp
Tail lamp
Front fog lamp (if equipped)
Headlamp (LO, HI)
A/C compress ...
