Nissan Sentra Service Manual: Service data and specifications (SDS)

Nissan Sentra Service Manual / Driver controls / Exterior lighting system / Service data and specifications (SDS)

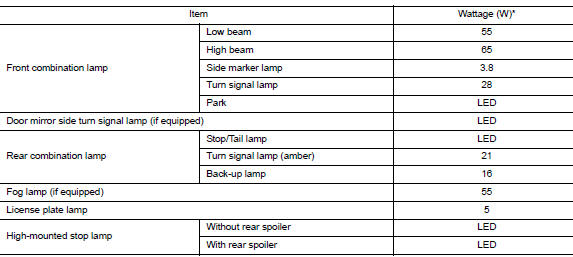

Bulb specifications

*: Always check with the Parts Department for the latest parts information.


*: Always check with the Parts Department for the latest parts information.

Rear combination lamp
Exploded View Rear combination lamp Rear turn signal lamp bulb Rear turn signal lamp socket LED lamp harness connector Rear combination lamp harness connector Back-up lamp bulb s ...

Interior lighting system
...

Other materials:

Rear bumper
Exploded view Rear bumper side bracket (LH) Rear bumper reinforcement Rear bumper energy absorber Rear bumper fascia reflector (LH) Rear bumper fascia reflector (RH) Rear bumper fascia Rear bumper side bracket (RH) Pawl Removal and installation CAUTION: Bumper fascia is ma ...

Parking lamp circuit
Description The ipdm e/r (intelligent power distribution module engine room) controls the tail lamp relay based on inputs from the bcm over the can communication lines. When the tail lamp relay is energized, power flows through fuse 36, located in the ipdm e/r. Power then flows to the front ...

Dtc/circuit diagnosis
Malfunction area chart Main line Branch line Short circuit Main line between ipdm-e and dlc circuit Diagnosis procedure 1.Check connector Turn the ignition switch off. Disconnect the battery cable from the negative terminal. Check the following terminals and connectors fo ...
