Nissan Sentra Service Manual: Removal and installation
Combination meter

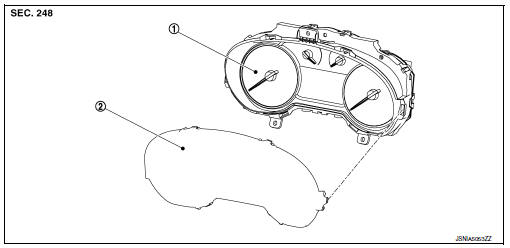

Exploded view
- Combination meter
- Front cover
Removal and installation
Removal
- Remove cluster lid a. Refer to ip-19, "removal and installation".
- Remove the screws from the combination meter.
- Remove the combination meter.
- Disconnect the combination meter harness connector and remove.
Installation
Installation is in the reverse order of removal.
Disassembly and assembly
Disassembly
Caution:
- Do not touch the display, pointer, the inside of front cover and the printed area of the dial during the work.
- Keep away from magnetic sources.
- Release the pawls and remove the front cover.
Pawl
Assembly
Assembly is in the reverse order of disassembly.
Caution:
- Do not touch the display, pointer, the inside of front cover and the printed area of the dial during the work.
- Keep away from magnetic sources.
Steering switch
Removal and installation
For removal and installation of the steering switch, refer to AV-62, "Removal and Installation".
Illumination control switch
Removal and installation
For removal and installation of the illumination control switch refer to inl-57, "removal and installation".
Normal operating condition
Compass
Compass : description
Compass
The electronic compass is highly protected from changes in most magnetic
fields. However, some large
changes in magnetic fields can affect it. Some exa ...
