WARNING
|
It is possible to lock/unlock all doors, turn the interior lights on, and activate the panic alarm by using the keyfob from outside the vehicle.
Be sure to remove the key from the vehicle before locking the doors.
The keyfob can operate at a distance of approximately 33 ft (10 m) from the vehicle. The effective distance depends on the conditions around the vehicle.
As many as 5 keyfobs can be used with one vehicle. For information concerning the purchase and use of additional keyfobs, contact a NISSAN dealer.
The keyfob will not function when:
The panic alarm will not activate when the key is in the ignition switch.
CAUTION
Listed below are conditions or occurrences which will damage the keyfob:
If a keyfob is lost or stolen, NISSAN recommends erasing the ID code of that keyfob.
This will prevent the keyfob from unauthorized use to unlock the vehicle. For information regarding the erasing procedure, please contact a NISSAN dealer.
How to use remote keyless entry system

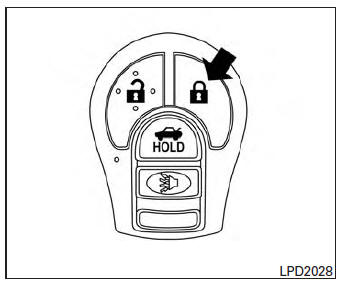

Locking the doors
button
NOTE:
An auto-relock function will operate after a full or partial unlock, when no further user action occurs. The relock will operate approximately 1 minute after full or partial unlock. The auto-relock function is cancelled when any door is opened or the key is inserted into the ignition.

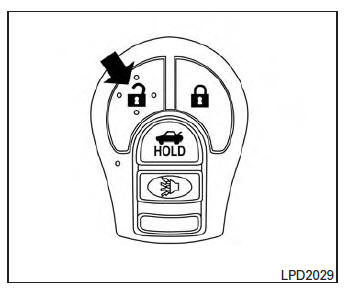

Unlocking the doors

button

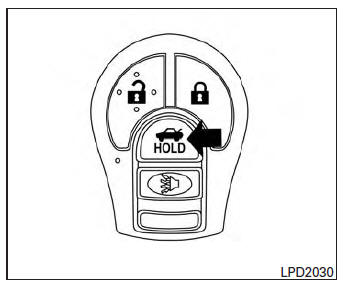

Releasing the trunk lid

Press the
button on the keyfob
for longer
than 0.5 seconds to open the trunk lid. The trunk
release button on the keyfob will not operate
when the ignition switch is placed in the ON
position.

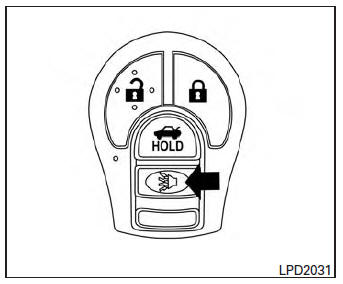

Using the panic alarm

If you are near your vehicle and feel threatened,
you may activate the panic alarm to call attention
by pressing and holding the
button
on the
keyfob for longer than 0.5 seconds.
The panic alarm will stay on for a period of time.
The panic alarm stops when:
Using the interior light
Press the
button on the
keyfob once to
turn on the interior lights.
For additional information, refer to “Interior light” in the “Instruments and controls” section in this manual.

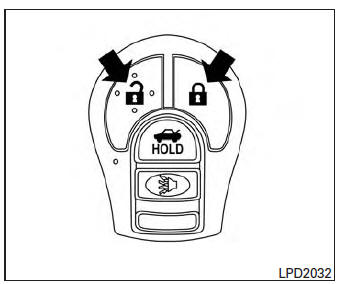

Silencing the horn beep feature

If desired, the horn beep feature can be deactivated using the keyfob.
To deactivate: Press and hold the
and
buttons for at least 2 seconds.
The hazard warning lights will flash three times to confirm that the horn beep feature has been deactivated.
To activate: Press and hold the
and
buttons for at least 2 seconds
once
more.
The hazard warning lights will flash once and the horn will sound once to confirm that the horn beep feature has been reactivated.
Deactivating the horn beep feature does not silence the horn if the alarm is triggered.
Child safety rear door lock
NISSAN Intelligent Key® (if so equipped)Antenna
Window antenna
The antenna pattern is printed inside the rear
window.
CAUTION
Do not place metalized film near the
rear window glass or attach any metal
parts to it. This may cause poor reception
or noise.
When cleaning the inside of the rear
window, be careful not to scratch or
d ...
