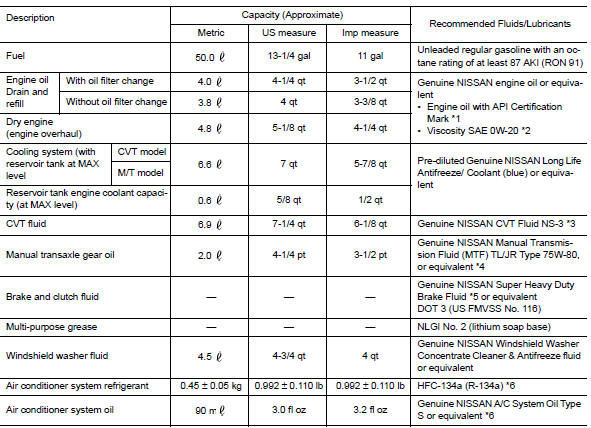

Fluids and lubricants
*1: For additional information, see “engine oil recommendation”.
*2: As an alternative to this recommended oil, sae 5w-30 conventional petroleum based oil may be used and meet all specifications and requirements necessary to maintain the new vehicle limited warranty.
*3: Use only genuine nissan cvt fluid ns-3, using automatic transmission fluid other than genuine nissan cvt fluid ns-3 will damage the cvt, which is not covered by the nissan new vehicle limited warranty.
*4 If genuine nissan manual transmission fluid (mtf) tl/jr type is not available, api gl-4+, viscosity sae 75w-80 may be used as a temporary replacement. However, use genuine nissan manual transmission fluid (mtf) tl/jr type as soon as it is available.
*5: Available in mainland u.S.A. Through a nissan dealer.
*6: For additional information, see "air conditioner specification label".
Engine oil recommendation
Nissan recommends the use of an energy conserving oil in order to improve fuel economy. Select only engine oils that meet the american petroleum institute (api) certification and international lubricant standardization and approval committee (ilsac) certification and sae viscosity standard. These oils have the api certification mark on the front of the container. Oils which do not have the specified quality label should not be used as they could cause engine damage.
Engine coolant mixture ratio
The engine cooling system is filled at the factory with a pre-diluted mixture of 50% genuine nissan long life antifreeze/coolant (blue) and 50% water to provide year-round anti-freeze and coolant protection. The antifreeze solution contains rust and corrosion inhibitors. Additional engine cooling system additives are not necessary.
