Nissan Sentra Service Manual: Rear seat belt

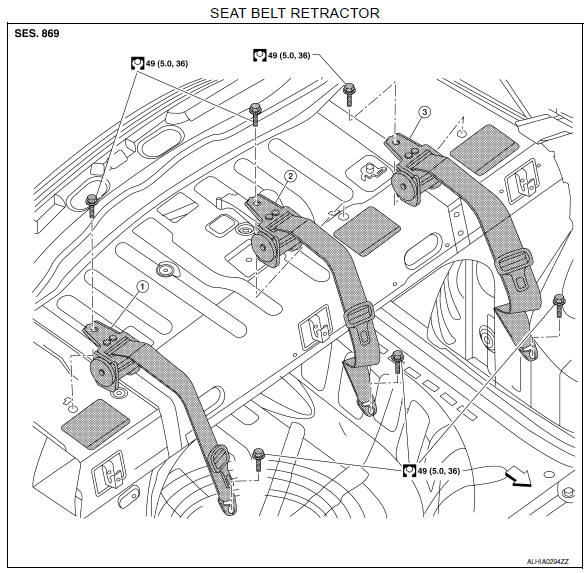

Exploded View - Seat Belt Retractor
- Seat belt retractor (RH)
- Seat belt retractor (center)
- Seat belt retractor (LH)
Front
Removal and Installation - Seat Belt Retractor
REMOVAL
- Remove the rear parcel shelf finisher. Refer to INT-33, "Removal and Installation".
- Remove the seat belt retractor anchor bolt and the seat belt retractor.
INSTALLATION
Installation is in the reverse order of removal.
- Always perform an inspection after repair to be sure the system is functioning within specifications. Refer to SB-5, "Inspection".
- Tighten the seat belt retractor bolts to specification. Refer to SB-11, "Exploded View - Seat Belt Retractor".

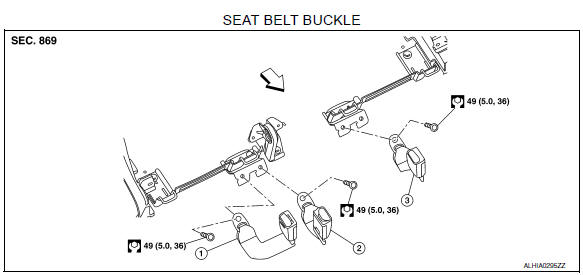

Exploded View - Seat Belt Buckle
- Seat belt buckle (RH)
- Seat belt buckle (center)
- Seat belt buckle (LH)
Front
Removal and Installation - Seat Belt Buckle
REMOVAL
- Remove rear seat cushion assembly. Refer to SE-23, "Removal and Installation - Seat Cushion Assembly".
- Remove seat belt buckle anchor bolt and the seat belt buckle.
INSTALLATION
Installation is in the reverse order of removal.
- Always perform an inspection after repair to be sure the system is functioning within specifications. Refer to SB-5, "Inspection".
- Tighten the seat belt buckle anchor bolt to specification. Refer to SB-11, "Exploded View - Seat Belt Retractor".
Front seat belt
Exploded View
D-ring anchor
Seat belt height adjuster cover
Seat belt buckle
Seat belt retractor
Seat belt height adjuster
Lap belt pre-tensioner harness
connector
Shoulder ...
Latch system for children
Exploded View
LATCH bracket (RH)
LATCH bracket (LH)
Seat belt buckle anchor bracket
Front
Removal and Installation
REMOVAL
Remove the rear seat cushion assembly. Refer to SE-23, ...
