Nissan Sentra Service Manual: Rear parcel shelf finisher

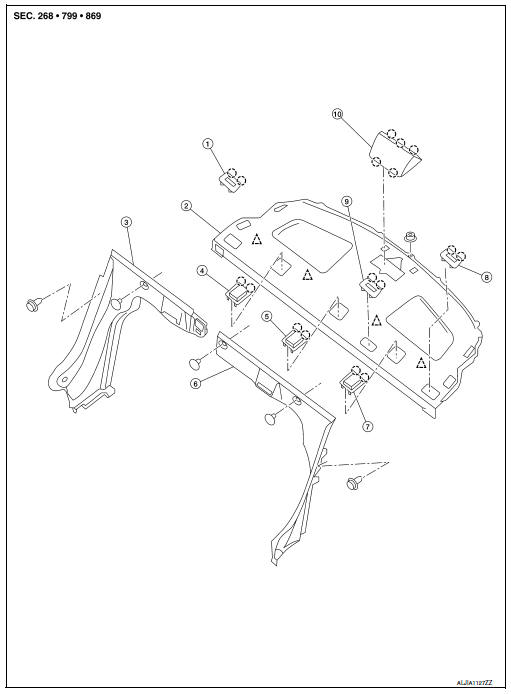

Exploded View


  1. Seat belt finisher (RH)
  2. Rear parcel shelf finisher
  3. Rear seatback finisher (RH)
  4. Top tether strap anchor finisher (RH)
  5. Top tether strap anchor finisher (center)
  6. Rear seatback finisher (LH)
  7. Top tether strap anchor finisher (LH)
  8. Seat belt finisher (LH)
  9. Seat belt finisher (center)
  10. High-mounted stop lamp

Clip Pawl


Removal and Installation Clip


Removal and Installation

REMOVAL

  1. Remove high-mounted stop lamp (if equipped). Refer to EXL-124, "Removal and Installation".
  2. Remove rear pillar finisher (LH/RH). Refer to INT-29, "REAR PILLAR FINISHER : Removal and Installation".
  3. Remove top three clips from the rear seatback finishers (LH/RH).
  4. Remove the rear seat belt lower anchor bolts. Refer to SB-11, "Removal and Installation - Seat Belt Retractor".
  5. Remove rear parcel shelf finisher.
  1. Release seat belt finisher pawls using a suitable tool (A) and remove all seat belt finishers (LH/RH/center).

: Pawl



  1. Route all rear seat belts through rear parcel shelf finisher.
  2. Release the rear parcel shelf finisher clips as shown.

Clip



  1. Pull rear parcel shelf finisher forward and remove.


  1. Remove top tether strap anchor finishers from rear parcel shelf finisher.

INSTALLATION

Installation is in the reverse order of removal.

Removal and Installation-Top Tether Strap Anchor Finisher

REMOVAL

Release top tether strap anchor finisher pawls and remove the top tether strap anchor finisher.

INSTALLATION

Installation is in the reverse order of removal.
