Nissan Sentra Service Manual: Procedures without Cowl Top Cover

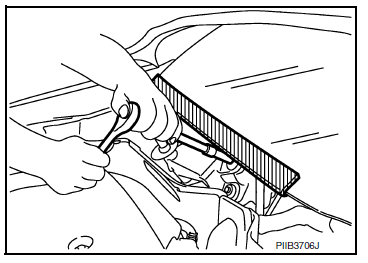

When performing the procedure after removing cowl top cover, cover the lower end of windshield with urethane, etc.
Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”,
used along
with a front seat belt, helps to reduce the risk or severity of injury to the
dri ...
Cautions in Removing Battery Terminal and AV Control Unit
CAUTION:
Remove battery terminal and AV control unit after a lapse of 30
seconds or more after turning the ignition
switch OFF.
NOTE:
After the ignition switch is turned OFF, the AV control unit ...
