Nissan Sentra Service Manual: Preparation

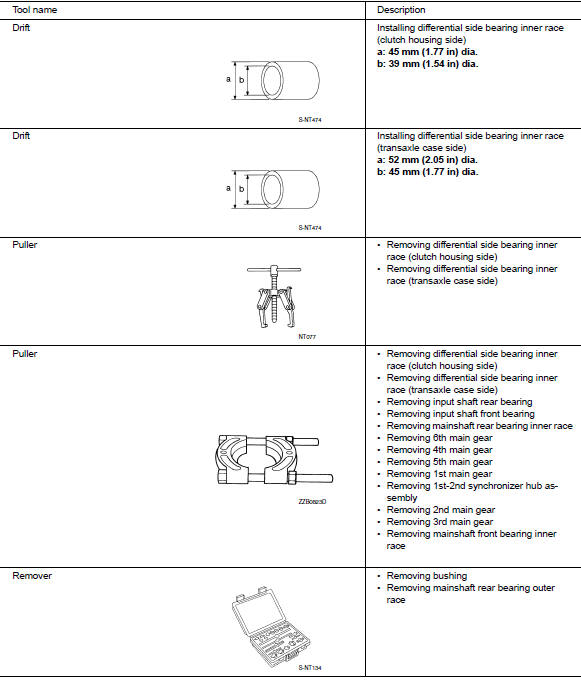

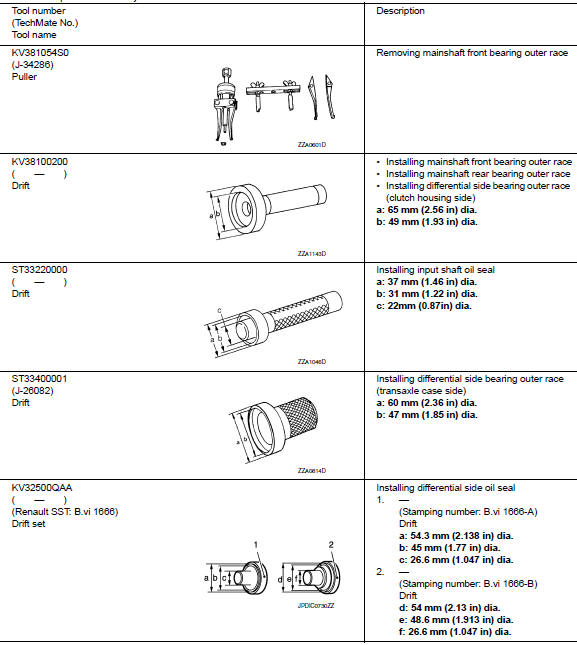

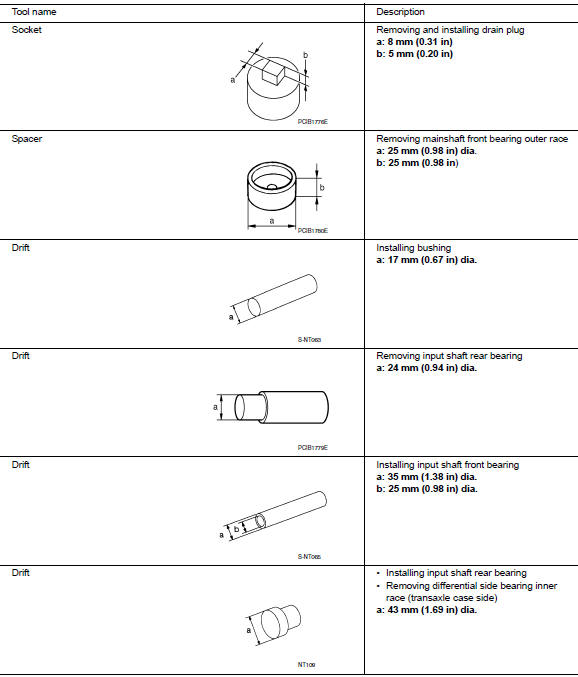

Special Service Tools
The actual shape of the tools may differ from those illustrated here.

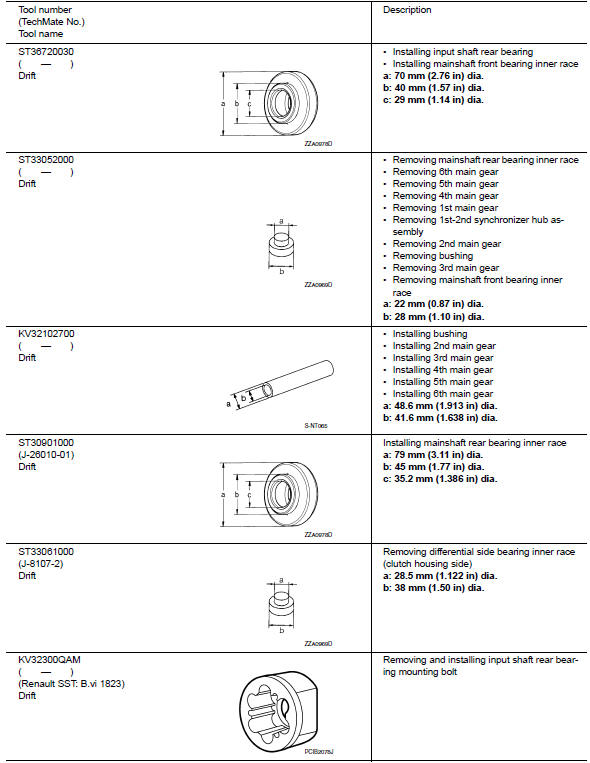

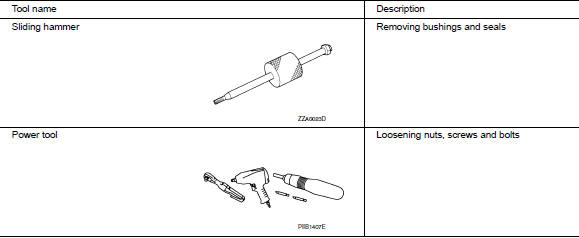

Commercial Service Tools
Precaution
Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT
BELT PRE-TENSIONER"
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE ...
System description
COMPONENT PARTS
Component Parts Location
Transaxle assembly
STRUCTURE AND OPERATION
Sectional View
3rd input gear
3rd-4th synchronizer hub assembly
4th input gear
5th ...
